H1050-xx

190,- €









H1050A

225,-€

Sensor house to fit Poseidons solid state sensor (or standard sensor)  to Inspiration breathing loop



Connections available
Inspiration
--JJ
--MEG
--rEvo
--Dra Dolphin
--Dra Ray
---in hose for various breathers (like Kiss Classic and so on)




Version A comes with a sensor pod, so standard 11 39 MD3/MHD cells can be installed

various connections are possibeä



T-pieces also available...see below

H1050-Pos

190,- €



Sensor house to fit Poseidons CPOD with solid state sensor (or standard sensor)  to Poseidon fittings



H1050-LAR

190,- €
Sensor house to fit Poseidons CPOD with solid state sensor (or standard sensor)  to LAR7

H2500


290,- €

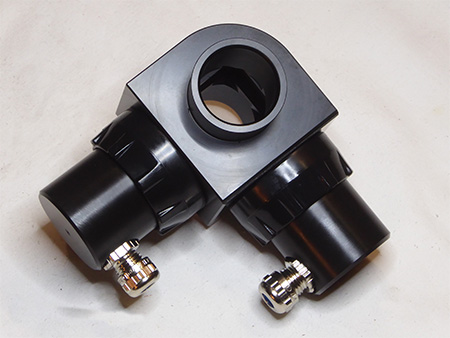

 senorhouse for 2 separate sensors, "in hose form"

instead of hose fittings various other connections are possible

One gland each chamber or two on one chamber to connect them

Poseidon CPOD fits




ATS0055

210,-€ / piece

225-€ with nut



T-piece with O2 sensor house attached

for the ATS BMCL

special for for a SI Tech inlet valve,

so it can be used as manual add

does have a watertrap



shown here for Poseidon hose connection



ATS0055

275,- € with nut and valve





T-piece with O2 sensor house attached

for the ATS BMCL

special for for a SI Tech inlet valve,

so it can be used as manual add

does have a watertrap



shown here for Poseidon hose connection







PD0750

230,- €



T-piece with integrated single cell house and 3/8 UNF hole for gas injecting

House is made from one solid block of course

The Solid State Sensor C-pod fits also






75,- Euro

bag_cpod


Bag CPOD connector, 49-50mm hole needed

price is without CPOD




70,-Euro

price per 1 piece without cpod



Apeks OPV thread to CPOD converter

to install a CPOD holder instead of an APEKS OPV for example

On request also for SI Tech connection possible


LIB005

255,- €

Sensor T piece for Liberty CCR

As seen for a standard R22D type cell

Poseidons Solid State C-pod also fits this T-cell house.





PD003B

95,-€

without cable



Single sensor house (original T-piece)

with different style for cable gland

it used the PSR 11 39 TME cell
the other version holds PSR 11 39 MD3 cells





more pictures on BMCL side

BMCL005

240,- €

price without hose and angle



NEW style sensor T-piece
with 3/8 hole for Dil injection

Poseidons Solid State C-pod also fits this T-cell house.

Made from solid block of POM

The sensor chamber is turnable

Our standard plugs with nut fit here to close in case you like to use it without sensor.



Standard cells fit in and also the chamber can be replaced with the original Poseidon solid state chamber/sensor

The sensor is in the center and in front of the sensor the water trap ahs a very small bypass to allow gas passing through fro best ventilation

The small hole seen on the middle picture is the gas inlet. Is goes through the water trap to avoid pushing moisture to the cell surface




H0015

55,-€

a cell holder for homebuilders.

it is a threaded tube,
to fit on the p-port instead of the p-port nut inside a breathing bag.
It has three holes with threads for cells



New Version now available, with detachable sensor chamber

So with minimum change it also can be an O2 Sensor housing



H2015

235,-€



CO2 cell holder for hoses.
for the cell used by Fox Lodari


This is NOT a T-piece, it  is a cell holder to be placed into a cutted hose.


The pic shows the fittngs for KISS hoses. Both hose ends are easy detachable.

It also fits the JJ


Other hoses fittings are possible





PD0075

245,-€

New style, special 3 cell sensor house for the MK6


Mounted directly to the head.

This special house seen left side has a p-port fitting,
as Ray hoses were used on that particular house

It also can have original thread fitting of course.

Mounted it looks like this.....


H1000

110,-€

Cell holder for Inspiration

Classic  / Vision



H1010

135,-€

Extra cell holder, no modification needed

to screw on head, fits also the New Vision

Teledyn and AII sensors fit in, screwed sensor



H0600

130,-€

 p-port style cell holder

This is NOT for K1 style cells.

Here are R22D equivalent sensors installed!
 Namley the Analytical Industries sensors PSR 11 39 TME
which is a 100% PSR 11 39 MD3/MHD sensor, just a stripped housing

Sensor has also 3 pin Molex plug on back!

overall lenght cell holder  150mm, diameter 36mm

Cage only   (inside bag) aprox 104mm, diameter 50mm




H0605

125,-€



2 Cell p-port holder

also for 2 TME/MDSX cells




H0610

140,-€



3 Cell p-port holder

 you also can have it with two threads.

just let us know which threads you need.
(M12x1,5 or PG7, or a mix of both..)

sensor is on oposite side now

Tell us which side you like the cable glands











P0070

56,- €



p-port connector without cable

comes with cable gland

Sensors up to diameter of 29mm fit in


P0072

178,-€



O2 sensor p-connector fitting

including 7 pin Fischer cable
 (w/o sensor), ready with gold molex connectors

check pinnig of cable here please!

Sensors up to diameter of 29mm fit in






H0620

245,-€



New style 3cell sensor house

one side male p-port, one side Ray hose fitting




H0650

240,-€

3 cell internal sensor house

for PSR 11 39 TME cells or PSR 11 39 MDSX

Top;
 has Dolhin hose fitting + also the thread for the original nut to fix it in a shell
 like original Dolphin connector

Bottom
has male p-port

see more pics here




H0700

240,-€



Check the VERY SPECIAL link!

H0750

240,-€



3 cell sensor house
with asymetric p-port connctions male-female





You can choose other threads and connections!


H0760

240,-€



3 cell sensor house
with IDA72-scrubber thread and male p-port on top

the lower nut is rotating free
on top you can open the house


H0090a

270,-€
(no cable included)



Dolphin, triple sensor house,
90° hose connection

Picture in use

 same high like 90 degree angle, fitted with Fischer plug, 7 Pin
PSR 11 39 MD3/R 22 D type

with 7 pin Fischer Plug - no cable included

You can choose other threads and connections!


H0090b

240,-€


Dolphin, triple sensor house,
90° hose connection

Picture in use

 same high like 90 degree angle, one or two cable glands
PSR 11 39 MD3/R 22 D type

You can choose other threads and connections!


H0055

240,-€

3 Sensor House Dolphin
--The most compact form --

hose goes 90 degree, sensors on top

hose has same high with the 90 degree angle

will fit SS shell with handling bar!

You can choose other threads and connections!



Set starts at 320,- Euro





A set of special fittings to connect a IDA 71 scrubber directly to a RAY unit.

3 cell sensor house and the proper extension, asymetric made to fit the different systems.


H0250

230,-€

3 cell sensor (R22D compatible cell size)house
for installing into a breathing bag

So the house itself is fixed with a scrrew to the bag.
The hole in the bag should be 73mm
Biggest diameter is 90mm
Lid is 80mm
Inside the bag aprox 13mm
Outside the bag aprox 40mm



The lid can be closed with bayonette lock

1 or 2 cable glands are of course possible

If you like 4 cells..also possible....




H0300

240,-€

3 Sensor House  /  Submatix


The ring inside is to have enough space when sensors are installed.
The three cell are directly in the gas stream.
Sensors are fixed, you also can use only one or two or......


H0325

240,-€

3 Sensor House - internal  /  Submatix


To realize the small size,
on the inhale bag a p-port must be installed

The house  has normal style Submatix fitting on top

see the pictures where installed

Sample, with two cable glands installed.


H0326

on request



 3 cell/bypass Sensor House Combo

p-port style for homebuilding e.g.

made for PSR 11 39 TME sensors


H0327

on request

3 cell/bypass Sensor House Combo

p-port style for homebuilding e.g.

made for PSR 11 39 TME sensors

infos on request


H0400

245,-€

 3 cell house for Azimuth

for Azimuth before jan 2005  --  click on the pic to see more
 take care which year your unit has,
it seems there was change in fittings around 2005.


H0450

275,-€

 3 cell house for NEW Azimuth

the price includes the house, the adapter and Dräger female p-port

click on the pic to see more about the Adapter for the new house

two cable glands/plugs can be made
 they will be installed in the bottom of house


H0100

170,-€

Single Sensor Holder

p-port style for Prism Topaz

just replace your plastic hose-bag connector
and place a cell directly into breathing loop


H0200

240,-€



3 cell Sensor house Draeger FGT 1

Extension 90 degree availabe for exhale side


H0070

150,-€

1 O2 cell in the breathing hose RAY

just replace your hose connector with this part
So you have an O2 cell holder in breathing loop, and still 90°angle for hose

actual pictures and sizes + use

1 cell R22D style via p-port holder


H0080

245,-€

RAY triple sensor house, p-port style

the house comes with straight male p-port holder
to have a quick disconnect with the hose

(no cable included)

    3 cells PSR 11 39 MD3 style
