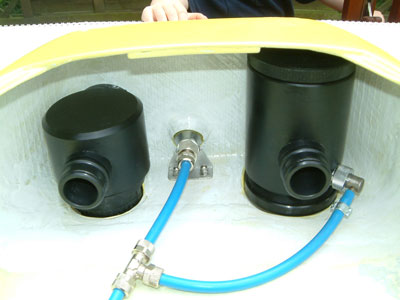

| Everybody ask for "more and more... compact"...but NOT Karl...see his nice shell with the internals | |
 Yep, this is a real EXTENSION.... |
 And of course the really nice front view |
 |
 |
| This house uses normal PSR 11 39 MHD cells NOT the small TME sensors | |
| A RAY special, make your own mind for purpose of use.... | The pictures are not showing all angles/perspectives correct, the cable glands are of course also in line...so put the unit in a tube for side mount Reb....or... |
 |
 |
 |
|
|
one more special |
|
 |
complete refitted to p-port system
|
| A new scrubber lid was made, with two
male p-ports integrated Also a special nut to hold the female exhale side p-port with the water trap hose was made
inhale side original p-port nut is used |
 |
 |
The original fitting "bag-hose" was modified to
screw in a new made male p-port. A female p-port system was made for the hose
this allows a very small type of connection, also for the idea of a very small 3 cell sensor house And original counter nut can be used to fix bag in the shell |
| The 3 cell sensor house, made for 3
cells R22D type, as we think the k1 cell type is not the best cell for
rebreathers, they are small but do not last very long and have the same
price....and housing are not much smaller in reality The house is "only" 67mm high, smaller is definetly not possible due to the high of sensor, gas flow, and cables and so on....
|
 |
 View inside the housing. House and lid are made from one solid piece, so no glue was nessesary Sensors are fixed |
 |
| The complete system, with equalizer for exhale side, which has no function (except equalizing) so far. | |
|
An other Special |
thanks to R.v.Bosse for the pictures of the shell |
|
|
A new style sensor house with integrated bypass unit and exhale extension with overpressure relief valve integrated |
|
Draeger Dolphin Bypass parts are used (the internal parts only) |
 sensorhouse and bypass house made from one solid piece, original Drager membran and lid cap are used |
 the upper part of the shell....was cut off...and a form for a higher head/top part was made (by R.v.B.) |
 Shell with new upper part and some modified holes.....for best fitting |
 both houses fit well in the new shell, on connection to breathing bag we changed to p-port system as this is more slimeline than the old system |
 External view, this side is the lower side, which is on the back of the diver. |
 |
Mount a wing and harness ...and dive.........
...just simple...nice Rebreather and nice work |
|
|
 |
 made from one solid block of course!! |
 |
| This is a photo trick...the original was gone too
fast.. .no time for a picture... |
|
 |
|
 |

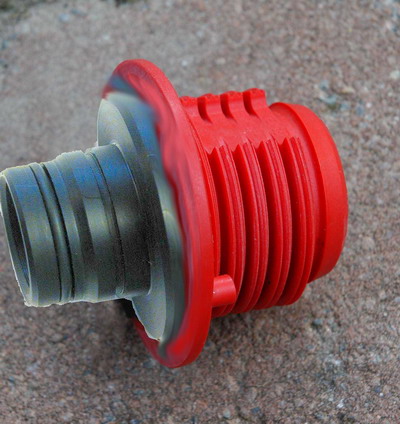

A very special part p-connector fitting on RG UFM Rebreather. So you can use a normal Ray breathing loop on that Rebreather.
|
