Often we receive inquiries on "9/16 female" fittings.

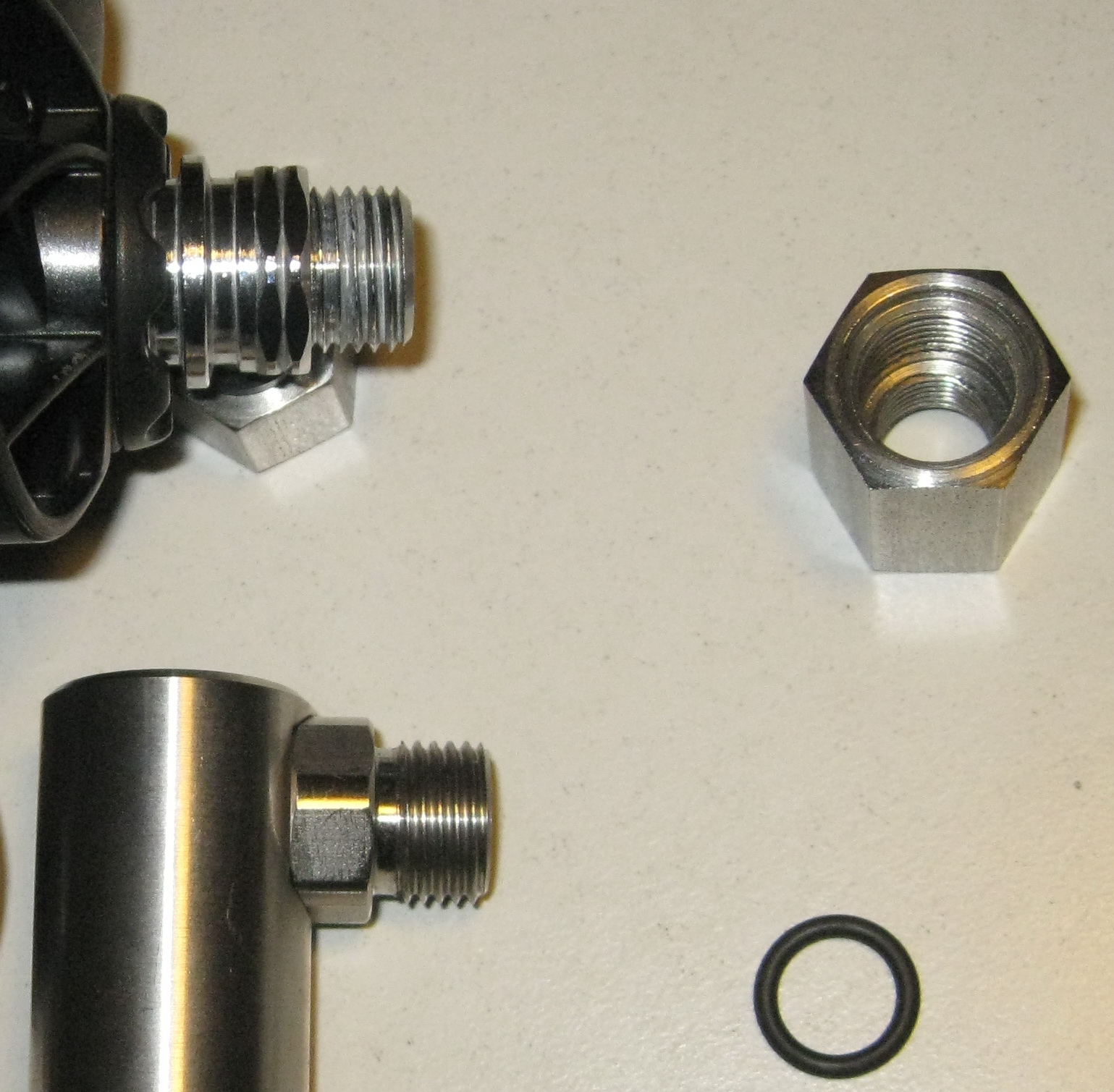

The standard 9/16 female does NOT fit everywhere, please have look to some pics here. We hope they are self explaning

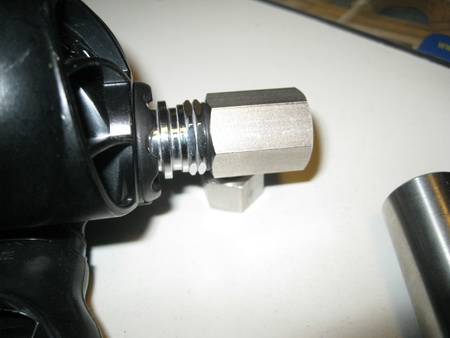

On the regulator style UNF 9/16 a standard female 9/16 fitting may NOT seal safe! You see the o‐ring is NOT proper in the shoulder of the female adapter, also below is still threadedpart, this o-ring can never seal safe and correct!! |
|

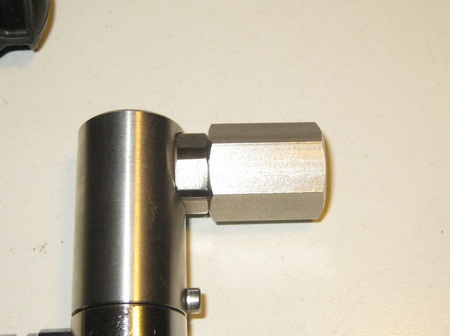

Compare it to a proper male 9/16 fitting. It closes and seals correct and safe
|
|

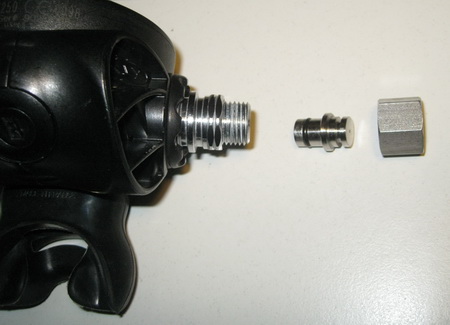

For regulator style male 9/16 threads it is safer and better to use an inner sealing system with a stem an free rotating nut.
|
|

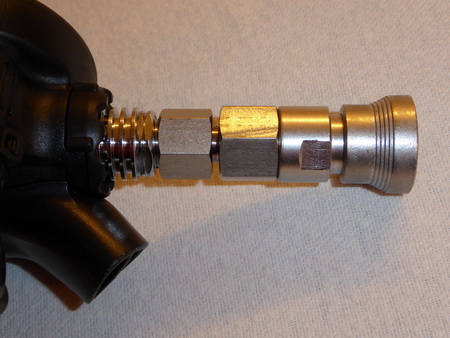

Also for a QC6 for
example connected to such a male 9/16 UNF....a stem style fitting is
needed! This seals nice and safe....
|
|
