s




Flat head_SideW

190,-€

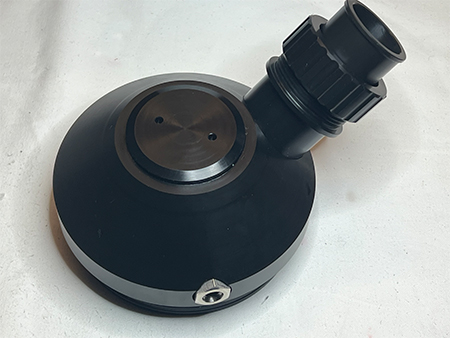

New head/cap for Sidewinder scrubber

Shown here with direct connection to Poseidon hoses

comes with nut and springs

Various versions are possible, final pricing depends on form and style of course



12,-€

(set of 4 springs)

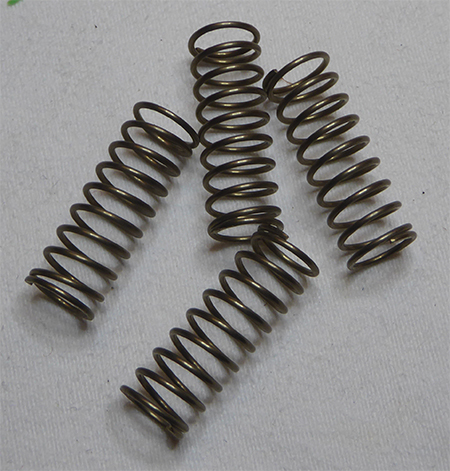

Set of 4 springs

for original Kiss SW head



49,-€

Kiss SW_cell plate

Replacement/spare sensor plate for Kiss SW

not printed, made from solid POM of course



58,-€/piece

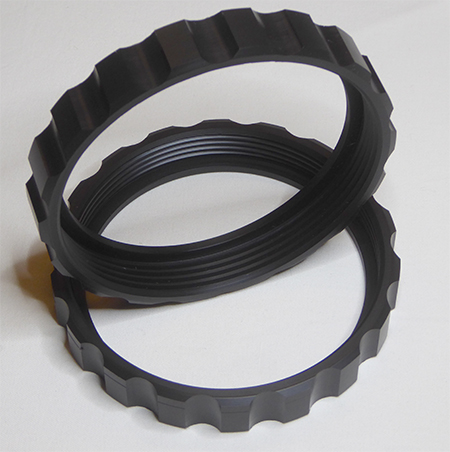

replacement screw for Sidewinder scrubber

POM machined nut, not molded or printed





set of 2



30,-€



Delrin

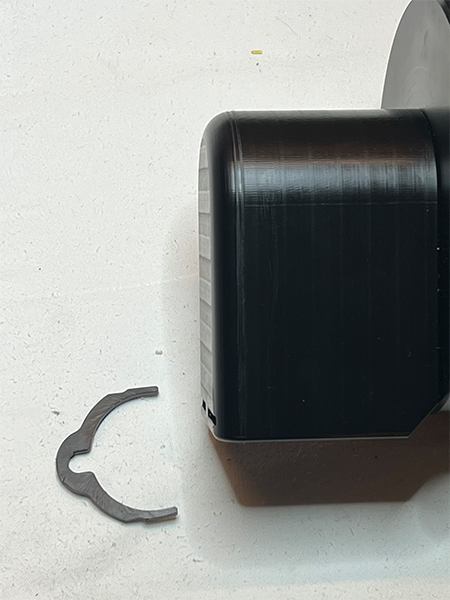

Clips for Kiss Sidewinder scrubber







Set of 2

(2 towers, 2 nuts, 2 hose connectors)

175,-





Kiss tower connector hose replacement



screwed connection

lenght of tower same as original

standard for 38/39mm hose

(other hose connectors are available on request)



P0016

24,-€ / Set

Plugs to close Classic Kiss tower

Set: two

fits also tower of Kiss SW

Kiss SideWinder

scrubber stand

29,- /piece

Kiss SideWinder scrubber stand

for easy filling the scrubber



Printed part




set of 2

Plug Kiss SW_small

28,-



Plug set for Kiss Sidewinder scrubber, lower port



set of 2

58,-

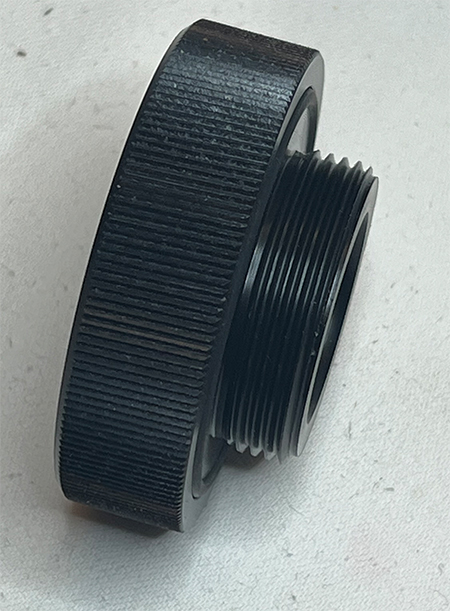

Plug for Kiss Sidewinder scrubber on top (instead of head)

BIG

KISS_SW_cal box

48,-€



 small cap with BCD connection for easy calibration of the Kiss SW head/sensors

can also be used to store the head......



KISS_SW_cal kit complete

70,- €



Cal kit for Kiss SW

1x cal call box with BCD hose connection

1 Full blindplug for towers

1x blindplug for tower with small hole, which can be closed with a 3/8 plug from 1stage, so you have full plug for storage

Sample picture!  Pricing is without the Fischer or AK cable or sensors!

more pics and details will follow



Inhale side: 795,- €



Exhale side: 795,- €

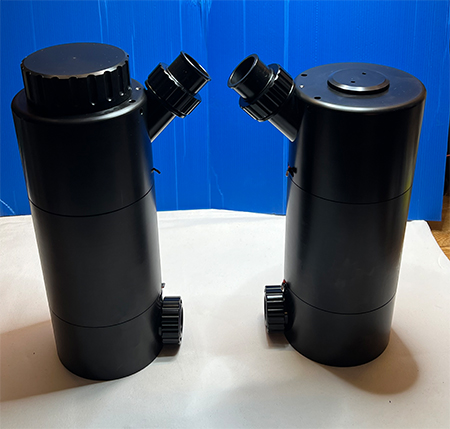

Scrubber Sidewinder style

complete with head

no OPV, no ADV !

136mm outer diameter, material : Delrin

high without the hose tower 320mm

partial fillable

filling: aprox 1,5 Kg per canister of sorb (depending on brand of sorb)

fixed lower stainless steel screen

lower bag connection fits original counterlung connection

Screw on hose fittings, standard 39mm hoses

Inhale head with 3 cell holder, Dil flush cleans cell surface, 2x M12x1,5

Exhale side with watertrap and head with 3/8 inlet for O2 injection from Kiss valve





Exhale side with watertrap

585,- €

per canister





Scrubber Sidewinder style, long

fits original heads

130mm outer diameter, material : Delrin

filling: aprox 1,7 Kg per canister of sorb (depending on brand of sorb)

Canister weight: 1,2 kg per canister

fixed lower stainless steel screen



custom wish diameters are possible on request!!!



Kiss LoopTowerNut

26,-€



Kiss loop tower nut (50x3)

POM machined nut, not molded or printed



MSR bag nut

bag0071

28,- €/piece

replacement nut for MSR bag

(as seen on bag0070)

POM machined nut, not molded or printed



KISS_DSV_Angles

185,-

set of 2

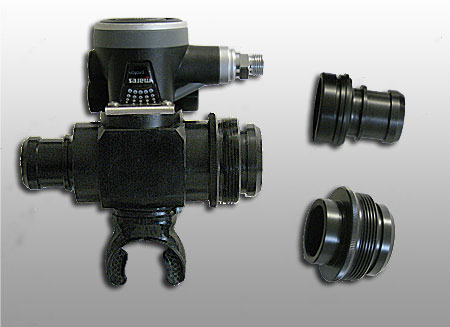

Angled hose connector set for KISS DSV

Price is for hose connectors only, no DSV included







D0800



7,00 € / meter





BARE CABLE


used for
KISS Triple displays fpr example

2 wires, sealed


SPK0004

36,- €



Replacement orifice for the KISS MAV

or built your own

Diameter 0.0035




SPK0005

36,- €

Replacement orifice for the KISS MAV

or built your own

Diameter 0.0030


SPK0006

36,- €

Replacement orifice for the KISS MAV

or built your own

Diameter 0.0025



IMPORTANT  - all orifices will be produced with a possible max tolerance of +0.0002 -  IMPORTANT

for example:  a 0.0030 jet can be just 0.0030 or 0.0031 or 0.0032

Aprox flow at 217PSI/15bar measured with air

0.0025"  0.55 LPM  --   0.0030"  0.8 LPM   --  0.0032" 0.9LPM  --  0.0035" 1.1 LPM

Thread is UNF 10-32



SPK_blind_plug

27,-

Blind plug to block/close a Kiss valve

same thread as a Kiss jet, so a "blind kiss jet"



SPK0007

36,- €

price without the Kiss jet

Fitting to hold inside a KISS jet.

Shown here 3/8male to 9/16 male

of course some other combinations of threads are possible




SPK0008

79,- €

price without the Kiss jet

Fitting to hold a KISS jet

male 3/8 to female 3/8 including filter

Flowdirection  from male to female




SPK0009

36,- €

price without the Kiss jet



Fitting to hold a KISS jet

male 3/8 to female 3/8, simple extension, no filter


SPK0050

65,- €

price without the Kiss jet



90° Fitting to hold a KISS jet

fem 9/16-  male 9/16  , no filter





SPK JET Tool

7,- Euro





Due to several requests

A simple tool to mount KISS jets into various adapters.

It is drilled down to fit also inside the 9/16 and 3/8 female connections and various MAVs






T0012

32,-€



Flowmeter

Range 0,1 - 1,0 (1,2) l/min Oxygen










SPK0055_Pos

62,- €/piece

replacement Kiss head connectors (loop tower)

sample shown here for Poseidon hose connection

other hose fittings/thread sizes are possible

fits also Kiss SW





SPK0015


195,- Euro

REPLACEMANT KIDNEY for CLASSIC Kiss

with one cable gland

Standard ist M12x1,5 thread.
PG7 thread is also possible of course


SPK0016


205,- Euro



REPLACEMANT KIDNEY for CLASSIC Kiss

with TWO cable glands

Standard ist M12x1,5 thread.
PG7 thread is also possible of course




SPK0017


230,- Euro





REPLACEMANT KIDNEY for CLASSIC Kiss

now with BlueGlobe glands

3x M10x1,5 thread

This new cable gland allows to install cables from 1,5 to 6mm diameter









SPK0020


55,- Euro

CALIBRATION KIT for SPORT KISS sensor house

fits all sensor houses for SPORT Kiss





P0016

24,- € / Set

PLUGS for CLASSIC KISS

Set of 2



Alle Preise, die auf der Webseite angegeben sind verstehen sich inklusive der gesetzlichen MwSt. und zzgl Versandkosten

Für unsere Waren bestehen die gesetzlichen Gewährleistungsrechte



note for  O_RINGS:

All parts (which come with an O-ring) are shipped with a dry (no grease) O-ring.
So take care that you use YOUR proper grease.
We decide to do that so there is no problem on mixing up different greases or so!
