What ever part you see here does NOT have any CE. These parts are for developing and demonstration purpose only



The house is available ..new picture will come!!!!
The actual house looks indentically

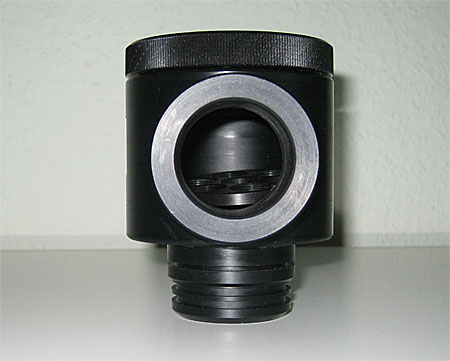

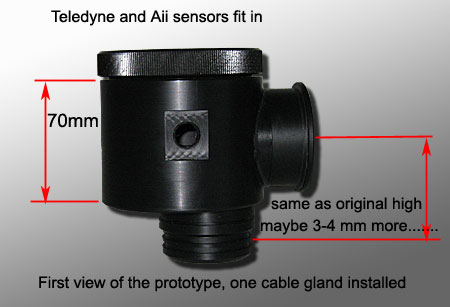

APO 0010 NEW and ready

3 cell sensor house for the Apocalypse rebreather

New picture will come

It is made for Aii and Teledyn sensors

By exchanging this house to the original 90 degree elbow

you won´t notice any difference in hose lenght. The lower

connection is made out of center, so is it as small as possible.

cable gland is 90 degre to hose.

two cable glands, no problem.

Standard we always drill M12x1,5  as the blue globe cable glands

are just the best and only available in metric



225,- Euro

picture follows AP0015

Sensorpot

for existing pot holder



115,- Euro

and yes, due to several requests, there is also a 4cell holder plate available

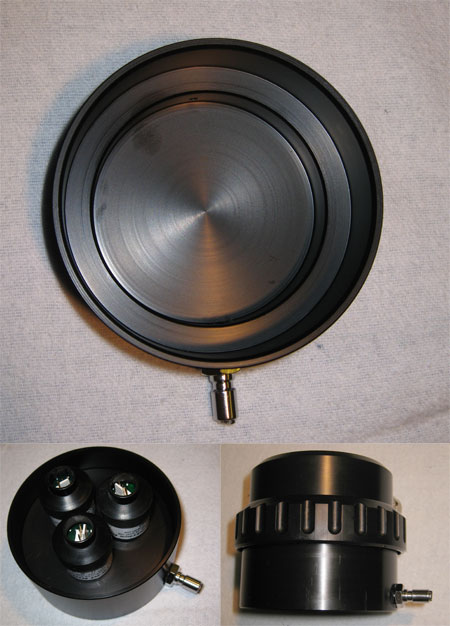

AP0155 Calibration pot holder





a simple and easy to use calibration pot holder

It has the same dimensions internally as the original pot holder, so all sensor pots
can be put on. There is no thread on it, as it is not made for overpressure,
just put the sensor pot on, with or without o-rings.

It has a 3/8 UNF hole with an inflator nipple in it
and a 3mm hole on opposite, so gas can pass.



50,- Euro including the inflatorcoupling






AP0050





POM tube with metal sives and spring

170,- Euro


    Also already available



Adapterset to fit OXY2 to APOC

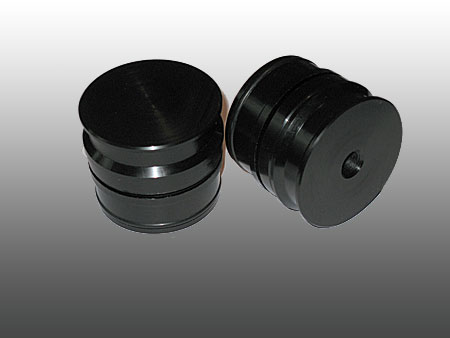

AP0200

Blindplug for the APOC p-port

set of two, one has a pluged 3/8 UNF hole

24,- Euro for a set of 2



this set fits both p-ports

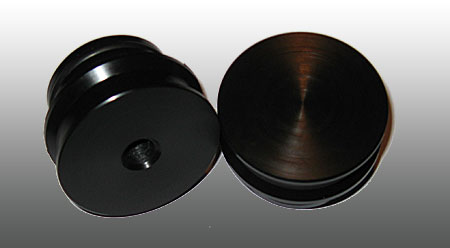

AP0210

Blindplug for the APOC male p-port fittings
to close breathing loop for example

set of two, one has a pluged 3/8 UNF hole

22,- Euro for a set of 2
