this page is completly under reconstruction, please check links on left side to find your parts

here some advices  *  You are looking fo special made parts? Ask us!
     *  Atlantis User (please tell us, not all adapters are the same for Dolphin and Atlantis!!!)
     *  Most of adapters and parts we also make for Ray, Azimuth, Voyager, Submatix not all listed here
     *  YES, we sell original DRAEGER parts, email us

  -  AZIMUTH and UBS 40  Spare Parts updated !!!
  -





many try to copy, get the original ADAPTERS and FITTINGS.....



s
If you do not find an adapter you need.....tell us..maybe we can make it....

T0305 NEW  part

manual gas add (O2 or Dil)

the 9/16 male adapter can be replaced to...what you like...

85,- Euro

unscrew the 9/16 adapter and you have 3/8 UNF female
T0200



 1.stage APEKS DS4

300 bar DIN fitting



109,- Euro



Also available: SPANNER for DS4

(see tools please)



the original DS4 can operate to around 13 bar max IP
T0200A

Due to several requests

stronger spring for DS4 1 stage.

This spring has same dimensions as original, but different characteristics
It is possible to adjust the DS4 with this spring from 12 to 20 bar IP

No modification needed at the DS4

25,- Euro




  T0201 Service Kit Apeks 1st stage

22,- Euro

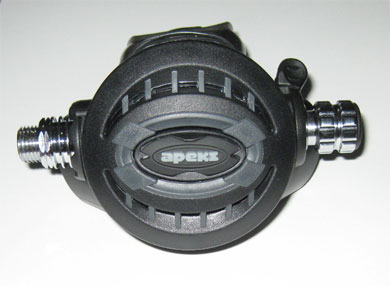

T0210 now available

2nd stage XTX50, Apeks

175,- Euro
  T0211

Service Kit Apeks 2nd stage

12,- Euro

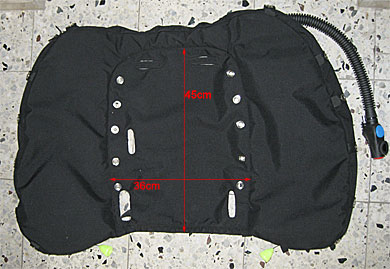

T0190 Wing, nice to model it to your rebreather.

Cordura

Lift 25Kg (55lbs)

prepared to install bungees (included)

280,- Euro

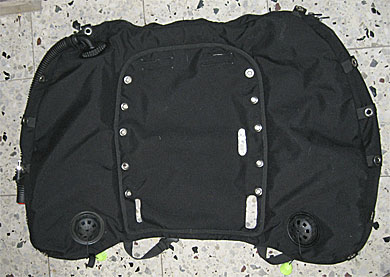

back view, 2 rapid dump units installed


Please check here for update NEW CMF valve info



 CM0070

more parts here

 Check constant flow link in menu

click on the pic for more pics and info and complete sets

for hose/tanks clips, check Tools page

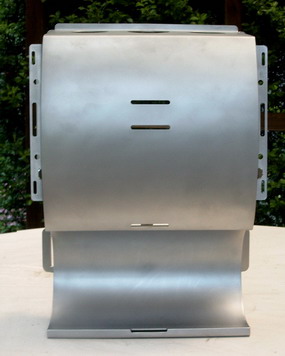

 SH0100



 stainless steel shell for the Dolphin

A very very unique part

The shell is a few cm longer and wider than original plastic shell

-,- €     n/a right now!

comes with two quick disconnect

weight is approx: 8 kg (9 with QD)




SH0110 Ring for the rubber which holds OP valve

thicker than original, as shell is thinner.



15,- Euro
Now also with handling bar!!

click pic to enlarge

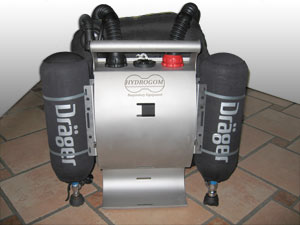

 SH0200



 An other nice piece of work

Handling bar for the SS shell

160-, €

now available

weight: 850 gramm (including bolts)



- WICHTIGER HINWEIS - DISCLAIMER - IMPORTANT NOTE -







Alle Artikel nur für den Export / Only for Export





Wir weisen an dieser Stelle nochmals ausdrücklich darauf hin,
dass alle Artikel auf dieser Seite Sammlerstücke ohne jegliche Gewähr oder Garantie sind.
Die Verwendung, der Ein- oder Anbau und die Nutzung allgemein
und in jeglicher Form ist nicht zulässig und erfolgt immer auf eigene Gefahr.
Durch Verwendung der Teile erlischt die Zulassung entsprechender Geräte.
Durch Erwerb dieser Sammlerstücke akzeptiert der Käufer diese Bedingungen.
Die einzelnen Teile dienen ausschließlich zur Demonstration, nicht zur Verwendung.





All articles on this page are special and unique parts and for demonstration only and there is no warranty.
The use in any way is not legal and always on own risk.
Mounting these parts to any existing diving equipment may cause malfunction and the admission of your equipment will not be affective any more. On purchasing these items you accept these conditions.
All parts are exclusivly for demonstration purpose only, not for use!





note for  O-rings:

All parts (which come with an O-ring) are shipped with a dry (no grease) O-ring.
So take care that you use your proper grease.
We decide to do that so there is no problem on mixing up different greases or so!
