find some valves for different use. Due to the use of some valves...not all is always available...normally all valves listed here are NEW, unless otherwise noted. Some come with filter some not!

Torques see tanks page please

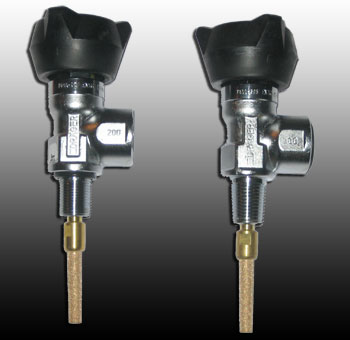

	V0010	DIN Valve/Ventil tank thread: M18 X 1,5 passend für Dolphin/Ray Flaschen v. Dräger Fits the Dolphin and Ray tanks from Draeger e.g. 200 bar Version: 60,-€ out for now left on the picture Not for Alu tanks from Draeger USA !! V0011 is the 300 bar version!!! same price
	V0015	Draeger 200 bar valve, straight version DIN fitting tank thread: small conical 60,- Euro right on the picture V0016 is the 300 bar version!!! same price
	V0020	Tank thread: small conical regulator fitting: 3/4" O2 fitting stainless steel valve used for LAR for example 60,- Euro angle 90°

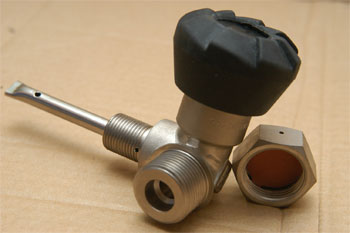

	V0021	Tank thread: M18x1,5 (same as V0020 but M18x1,5) regulator fitting: 3/4" O2 fitting stainless steel valve used for LAR for example 60,- Euro angle 90°

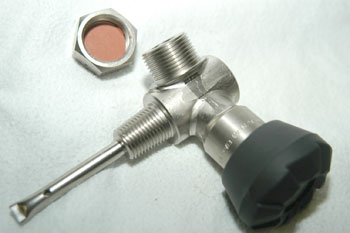

	V0024	Tank thread: small conical regulator fitting: 3/4" O2 fitting used in the steel and an stainless steel LAR tanks 60,- Euro angle 120° the small conical version is available in LEFTand RIGHT ((black and red knop)

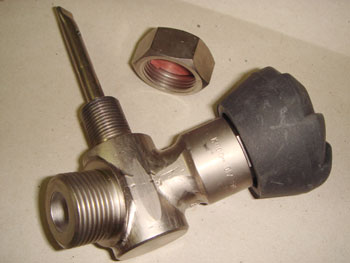

	V0025	Same as V0020 but with tank thread M18x,15 used in the steel and an stainless steel LAR tanks 60,- Euro angle 120°
	V0040	200 bar DIN valve straight version (180 degree knob-reg) Thread M18x1,5, (comes with o-ring) 75,- Euro V0041 is the 300 bar Version: 75,- Euro height 44mm
	V0045	Ready! 200 bar DIN valve straight version (180 degree knob-reg) Thread small conical (kleinkonisch) 75,- Euro height 44mm
	V0046	Colored knop for V0045 and V0040 green 10,- Euro

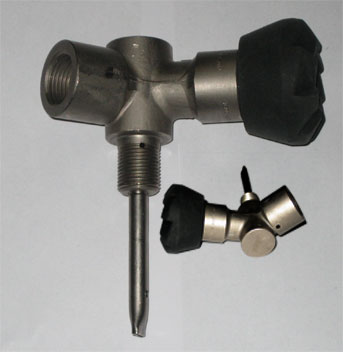

	V0050	300 bar DIN valve 120°angle M18x1,5 only as 300 bar available 60,- Euro

- WICHTIGER HINWEIS - DISCLAIMER - IMPORTANT NOTE -

	Alle Artikel nur für den Export / Only for Export

	Wir weisen an dieser Stelle nochmals ausdrücklich darauf hin, dass alle Artikel auf dieser Seite Sammlerstücke ohne jegliche Gewähr oder Garantie sind. Die Verwendung, der Ein- oder Anbau und die Nutzung allgemein und in jeglicher Form ist nicht zulässig und erfolgt immer auf eigene Gefahr. Durch Verwendung der Teile erlischt die Zulassung entsprechender Geräte. Durch Erwerb dieser Sammlerstücke akzeptiert der Käufer diese Bedingungen. Die einzelnen Teile dienen ausschließlich zur Demonstration, nicht zur Verwendung.

	All articles on this page are special and unique parts and for demonstration only and there is no warranty. The use in any way is not legal and always on own risk. Mounting these parts to any existing diving equipment may cause malfunction and the admission of your equipment will not be affective any more. On purchasing these items you accept these conditions. All parts are exclusivly for demonstration purpose only, not for use!

	note for O-rings: All parts (which come with an O-ring) are shipped with a dry (no grease) O-ring. So take care that you use your proper grease. We decide to do that so there is no problem on mixing up different greases or so!
