We receive quite a huge number of special wishes. And we are mostly able to help with it.

Anyway, we can not list and publish/show all these interessting and/or strange ideas we received in the past years. Most of them are unique...

We are basically a mashine shop. So if you like a special fitting, adapter, connector, tool, converter.... or something like that.....let us know what you need/like.

Please provide as much information as possible, measurements and type of sealing and so on.

A drawing/sketch would be helpfull. OR send in a part and we measure all and make a new to your needs.

Mostly it is impossible to have a price ready before we have the part ready. To get an idea, check our website and look for something similar. Normally the price then is the same or a little bit more. It depends a bit on threads, o-ring sealings and so on.

We try to show just some examples here....  will be updated regularly....


PD0600

165,- Euro

A very special fitting to use the Poseidon BOV/DSV in Sidemount configuration for example

seen here made to use original Poseidon hoses/connectors



only made on special request!



Fittings to use the Poseidon BOV for front or side mount breathers



Sample here to use Ray hoses



MegHead-mCCR

450,-

Simple replacement MEG Head

ready for up to 4 sensors, head has only 1x M12x1,5 hole for cable gland




A replacement head for a MEG

Jaksa solenoid

4 cells are possible

detachable controller unit

independend HUD or other secondary device

.....and some more gimmicks...

hose connectors standard fittings.







MegHead2

A special replacement head for a MEG

Jaksa solenoid

4 cells are possible

3 cable glands into "wiring box"

hose connectors wih HH bajonett fittings!

pricing vary of wishes and configuartions.......



A sample configuration with detachable AV1 controller and detachable Shearwater Petrel2 as secondary






Adding  a 3 sensor chamber to an old pSCR head, can be done on most heads.

Pricing may vary depending on head style/type





Solenoid box

can be used as seen here

Price vary depending on what is coming with the box

Box with lid  only: 180,- Euro, including 2 cable glands

Solenoid Jaksa:  220,- Euro

the 2 Fittings ( 9/16 and 3/8) for the solenoid: 75,- Euro

7 pin female plug Fischer   65,- Euro







This is a sample pictire only

A very special Blackbox (BB) to mount on a MARK15 for example

Shown with an AV1 eCCR controller.

Box including holder is made from one solid piece

Fitting/manifold to fit
a Jaksa solenoid

as seen here

85,- Euro

Seen here a fitting to connect to a G1/8 Jaksa solenoid to put directly to a head (wall sickness 4-6mm as seen here)

Outside connection is of course standard 9/16 UNF

P0004AC

 22,- € /piece

New special nut for p-port

works as anti collaps fitting, no sharp edges


Fittings for BOV

You have a BOV and like to connect a differnet type of hose
with maybe strange fittings and sizes...can be realized

here extended version to fit Dolphin hoses






A set of special fittings to connect a IDA 71 scrubber directly to a RAY unit.

3 cell sensor house and the proper extension, asymetric made to fit the different systems.

Set starts at 320,- Euro



can be used in this head for example

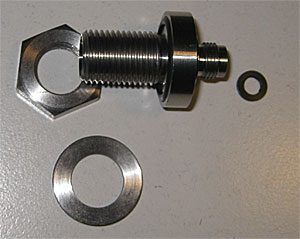

AFA0005

120,-€

Fitting 2x male 9/16

Inside a Kiss Jet (down side) and a filter (on outer side)

see the details here for that speicial fitting

of course the hex head has an o-ring sealing





Price shown is for the metal firring (not the head) and is including nut, disk, orifice (0,0030 or 0.0025) and filter, o-rings








  Custom wish in and ex-hale connectors for your idea of a rebreather head

Sample pic shows two connectors to be screwed to a head.

Price vary due to your ideas of course

Distributor

various threads/fittings/forms

You need a distributor with special fitting, e.g seen in the pic left..can be done

Of course prices vary depending on your wishes and fittings..

Special Form of

A0039

57,-



This adapter has the 2x 3/8 female holes on top a bit wider.

So there is enough room to connect a flowstop or a Swagelog fitting ---or other things



Distributorblock

2 times 3x 3/8 UNF

110,- Euro

This block has 2 times 3x UNF 3/8 holes in T-form, 1 on top 1 on bottom 1 in front.

the 2 distributor ways are NOT connected

4 small mountig holes



A0045

75,- Euro

Distributor/manifold

4x 3/8 on top

1x 9/16 below

Filling adapter

DC55



72,-€/piece

Filling adapter for special tanks can be made.

for example for the DC55 rebreather.

For some special valves we may need a sample of the valve if we do not have the data on file.
