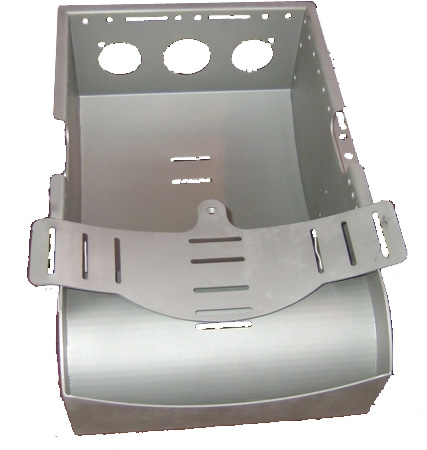

Dolphin shell, made from Stainless Steel

The new shell is a few cm wider and higher as the original, so much easier to place everything you need.

On both sides is an opening to get your hoses into the shell, so more flexibel

There is a QUICK system for tanks, both sides

You can either use the orignal jacket or a backplate/wing system, both is possible with standard SS shell

The weight is aprox 7,5 kg  and about 8,2 kg including the two quick disconect system, which is included!!

Even complete mounted, the unit has " a safe, comfortable  standing " because of it´s perfect bottom style. There you also can place a third tank, a battery pack or similar things

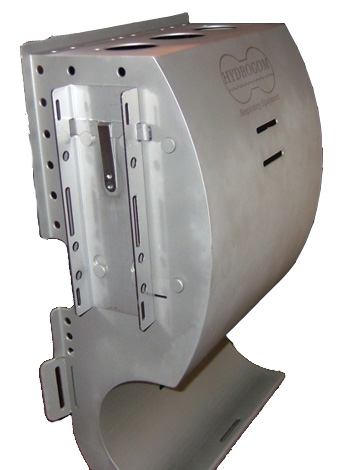

The NEW shell

Not shown on the picture is the system to fix back plate at upper position.

It´s a removable system to be more flexible, of course it is included.


Have a look at that complete set, nice?



7 Liter tanks

3 Sensor housing

90° angles

backplate and wing

CMF valve

and a bit more.... just nice



Photo from R.N. , Netherlands

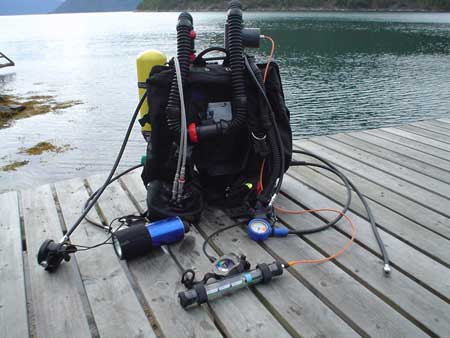

See also the nice rig of Matt C.  , England



The oxygen sensor housing and display were great! Feel really confident I know what I am breathing now. Should do as I have 4 sensors in the system!, still have the VR3 on it’s own one in the breathing bag. Still might look to fit a Fischer connector to your cell housing and use one of those. I’m not sure how people carry the display but as I am quite tall I just made a couple of loops out of some rubber and had it on my forearm, next to my computer. Didn’t get in the way at all J

Anyway, everything else was great, the shell is a dream, I only need 4 Kg of weight in my jacket for a big dry suit and wooly bear and as you can see the unit stands so nicely. The quick release system is great, my short 3l tanks sit really well. At the moment I was diving with the 5l as diluent which gives me lots of bailout, for longer dives I could put the other 3l on as well, lots of options!

Many thanks

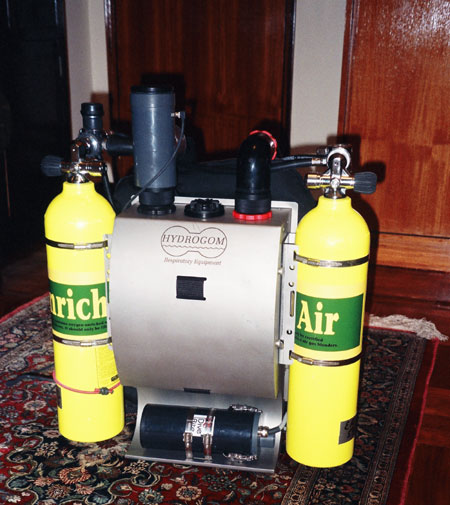

John J, Hong Kong



Hi Martin:

Thanks to you, I have the most interesting SCR in Hong Kong!  I had the unit out last weekend and had all of the Instructors (local) very excited about the unit, with lot's of questions!!!!! Of course I said that TECME is the company to work with.  I don't know if you have experience with the people that I dive with, but I dive with Pro-Dive-Hong Kong, and Mandarin Divers.  Steve Chan and Paul Nielson are the respective owners of the shops and really are great people to know.......

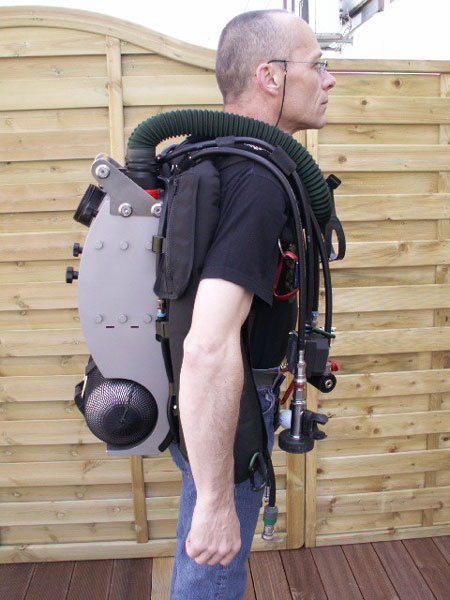

Have also a closer look to the unit from Philippe C. (Switzerland)






Below

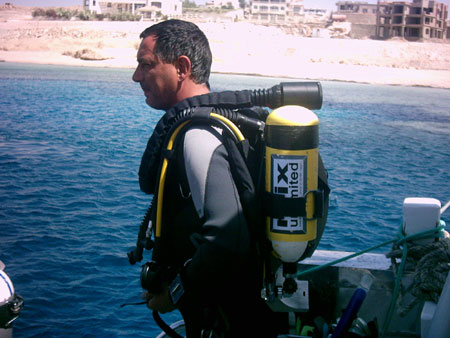

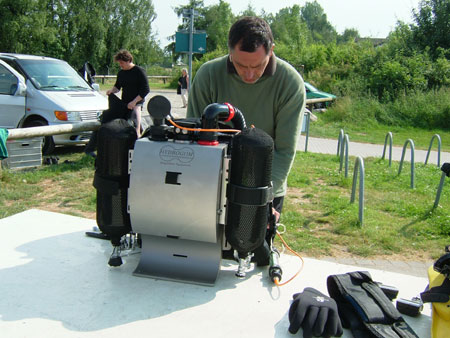

Yes, that´s me...Martin ..testing (and enjoying the testing.....) some new combinations in Sharm El Sheijk/Sinai

before carrying all to Sinai, some tests locally in Germany



with new 5mm semidry, no extra weight is needed (saltwater)

I just placed 2 extra kilo to top of the unit for better trim (the black tape top on the tanks keeps a piece of weight)



with Drysuit 5mm Neopren I need 4 kg of weight

the combination of house H0090 with one 90 degree extension is simply to describe: just perfect

Short overview
SS shell, backplate and wing, crotch straps

CMF valve, flow 0.8 liters O2 /min at 12 bar MP

2 times DS4 1.stage, O2 side with OPvalve

2x 5 liter steel tanks, valve down (both DIN fitting)

3 sensor display, sensor house H0090

exhale side 90 degree angle

gas injection into exhale bag via bypass unit on top of the shell.

Overpressure valve inside, inhale bag

all hoses coming over the shoulders

Computer: Cochran with 2 switchable constant ppO2, not cell integrated
