Sensor overview

Important note: AI sensors are NOT authorized for use in any Ambient Pressure LTD brand product



    specifications here

if you want to know production date of your sensor, please check serial number:

S/N: 005 12345.

the first # is the year 0 = 2010  the second and third is the month 05 = May
the last 5 are the serial #.


NEW    PSR 11-37-52D  a replacement cell for 9100-9220-9B type Is available now

Learn more on the sensors used in rebreathers here

Starting from 2009 all sensors are pressure tested ! Check details here please!!

Check here to find YOUR replacement sensor

Check the COMPLETE catalog here (pdf file)

the MDSX sensor  2pin male      the TME sensor, 3pin male

the MDSX1 sensor, has a 2 pin FEMALE connector

So what is the PSR-11-39-TME or the PSR-11-39-MDSX  /  MDSX1 ??

This is a stripped PSR 11 39 MD3. That means a full R22D compatible
Sensor, same technical data, same life time.

BUT    nearly size of a K1 style sensor!

Lenght/high (w/o cable)  22mm

Diameter   23,8 mm

The difference between MDSX (for Submatix) and the TME (for TECME) is just the male molex connector.

The MDSX has a 2pin and the TME a 3 pin, where only the 2 outer are used, so similiar to all R22D

compatible sensors, both are easily interchangeable of course

Price for MDSX or MDSX1 or TME is 75 Euro.

The MDSX1 is with a female 2 pin Molex, for newer Submatix rebreathers



And what is the difference between PSR-11-39-revo or the PSR POSEIDON  and PSR-11-39-MD3?

NONE, it is just the same!!

Also PSR 11 39 MD and MD3 are identical now (difference in housing is past)




    Effective December 1st , 2010
      Euro
Model No. Replaces         Diving Applications  Price
PSR-11-15D Drager = 680997 Ohmeda Analyzer  75,00
  IT Gambert = D-02
  Maxtec = MAX-11

PSR-11-15-2D IT Gambert = D-06 Drager Oxy Gauge, Drager Dolphin Rebreather 90,00
  Maxtec = MAX-302

PSR-11-33-NM1 Maxtec = MAX-310s (magnetic); MK15/15-5, CCR-100 95,00
IT Gambert = D-10

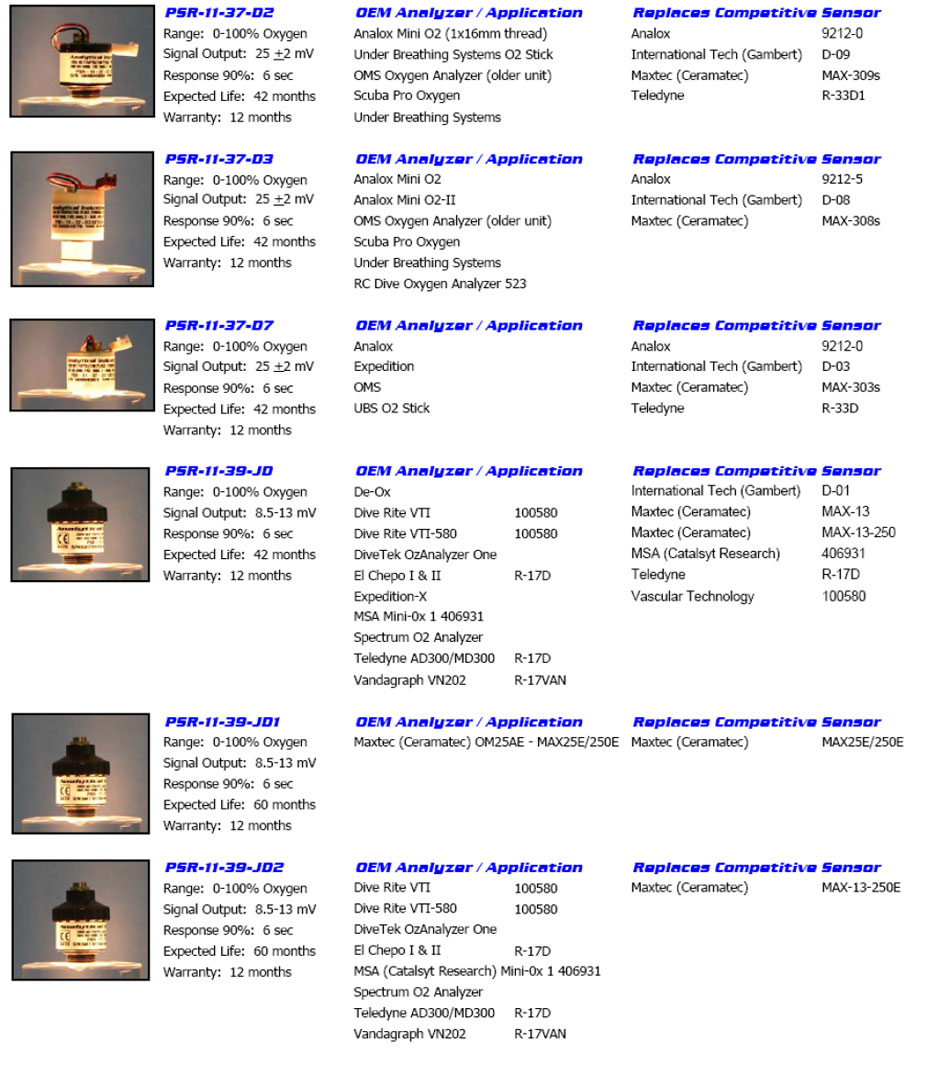

PSR-11-37-D2 Teledyne R-33D-1 Analox , OMS UBS O2 stick 80,00
  Maxtec = MAX-309
  IT Gambert = D-09

PSR-11-37-D2-1 Teledyne R-33D1-NUV Nuvair O2 stick 90,00

PSR-11-37-D3 Maxtec = MAX-308 Analox Mini O2/O2 DII, UBS O2 90,00
  IT Gambert = D-08

PSR-11-37-D4   Oxycheq / C-squared, inc. Expedition,  RC Dive PRO-1 90,00

PSR-11-37-D7 Maxtec = MAX-303 Analox OMS, UBS O2 Stick 90,00
  IT Gambert = D-03

PSR-11-39-ATA Analox 9100-9212-94 Analox ATA Tri-Mix analyzer 110,00

PSR 11-37-52D Analox 9100-9220-9B  Analox o2 EII 100,00

PSR-11-39-JD Teledyne R-17 CIS-Lunar, Dive Rite VTI, El Cheapo I & II, 75,00
Maxtec = MAX-301 / 13 MSA Mini-Ox, Spectrum, Vandagraph VN202
IT Gambert = D-01

PSR-11-39-JD1 Maxtec MAX-250E (5.5mm connector ); 80,00
    Maxtec OM-25AE

PSR-11-39-JD2 Teledyne R-17 CIS-Lunar, Dive Rite VTI, El Cheapo I & II, 75,00
Maxtec = MAX-301 / 13 MSA Mini-Ox, Spectrum, Vandagraph VN202
IT Gambert = D-01

PSR-11-39-MD/MD3 Teledyne R-22 Kiss, Innerspace Megaladon, Oxy Spy, CCR-2000, Uwatec, Optama 75,00
  Maxtec = MAX-12 / 305 Conchran Lifeguard, OXy2, VR3
  IT Gambert = D-04

PSR-11-39-APD coax connector retofit sensors for Inspi and Evolution 80,00

PSR-11-39-MHD IT Gambert = D-05 Megalodon, Juergensen Marine Hammerhead 75,00

PSR-11-39-MD1   ANDI Alpha 1, Nuvair Quick Stick, Pro-O2, OMS OX-ANII 75,00

PSR-11-39-MD2 Maxtec = MAX-304 UWATEC OXY 2 75,00

PSR-11-39-MDN N/A ( non-magnetic) 105,00

PSR-11-39 TME 3 pin Molex male various homebuilt modells  75.00

PSR-11-39-MDSX 2 pin Molex male Submatix SCR 100 Rebreather 75,00

PSR-11-39-MDSX1 2 pin Molex female Submatix SCR 100 Rebreather  (the newer Submatix modell) 75,00

PSR-11-39-TDG N/A Titan Rebreather 75,00

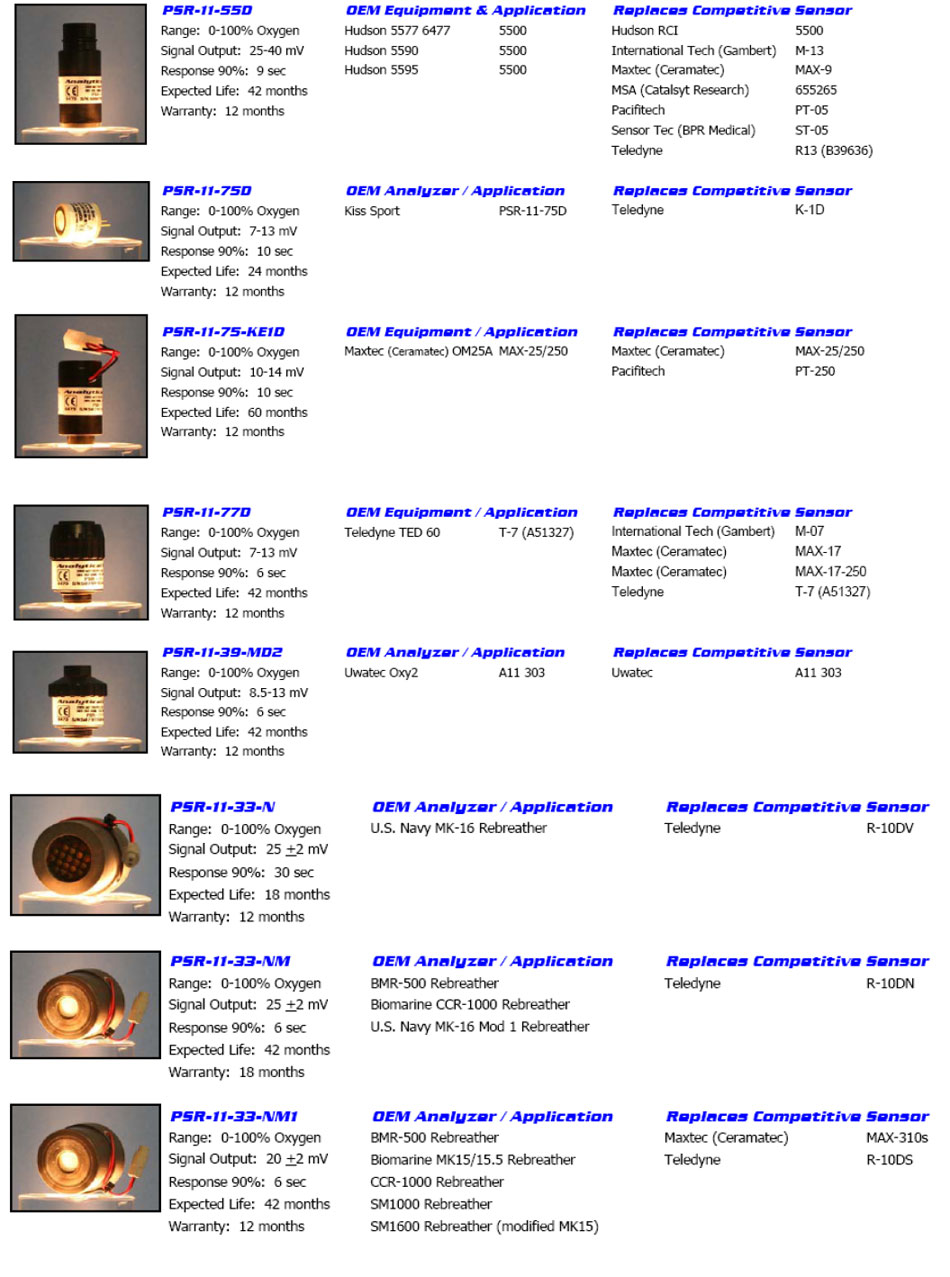

PSR-11-55D Hudson 5500 Hudson 5577 80,00
  Teledyne R-13
  Maxtec = MAX-9

PSR-11-75-D N/A KISS SPORT 75,00

PSR-11-75KE1D Maxtec MAX-250 Maxtec OM-25A 75,00
   Figaro KE-25

PSR-11-75-KE10+ Maxtec MAX-250 MAX O2+ 75,00

PSR-11-77D Teledyne T-7 Teledyne TED 60 90,00
  Maxtec = MAX-307
  IT Gambert = D-07

GPR 11-42-TEC-RB N/A HOMEBUILT REBREATHER 85,00
