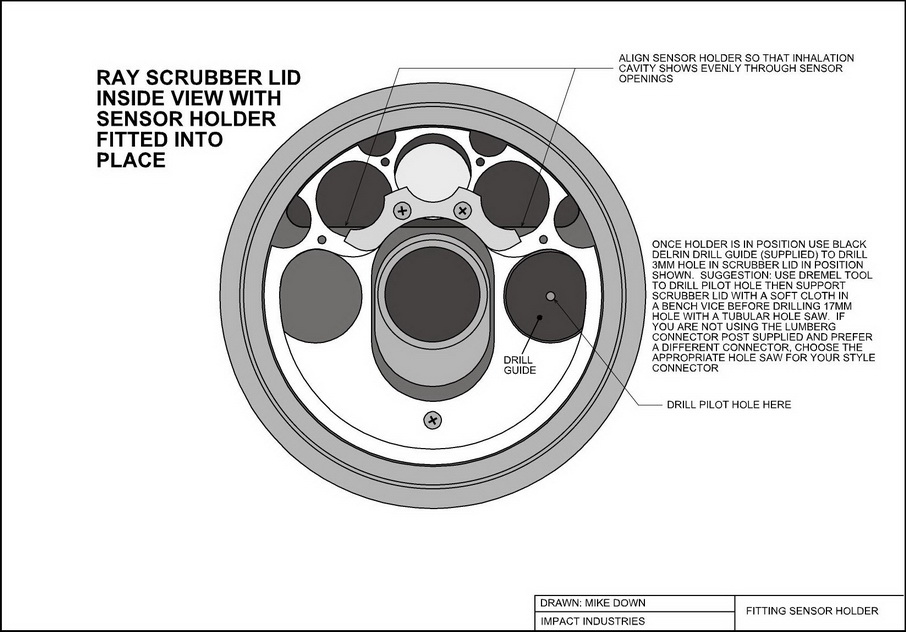

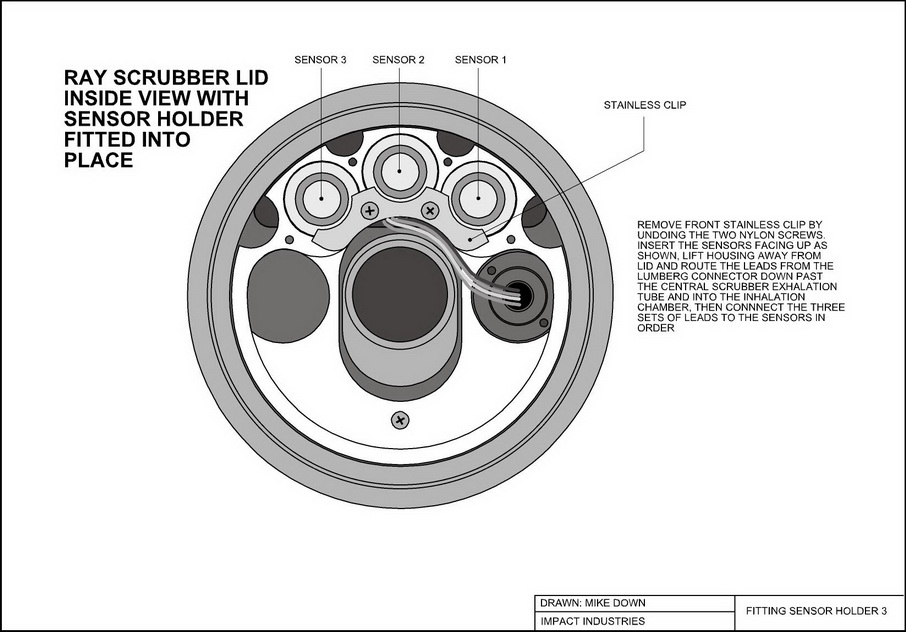

| The sensor holder can take up to
3 cells of course. It is made for two different typs of cells. 1. shown like in the picture above the PSR 11 39 TME cells fit perfectly, it come with a smal holder to fix sensors nicely 2. Also K1 style sensor will fit the holder
|
||
 |
||
 |

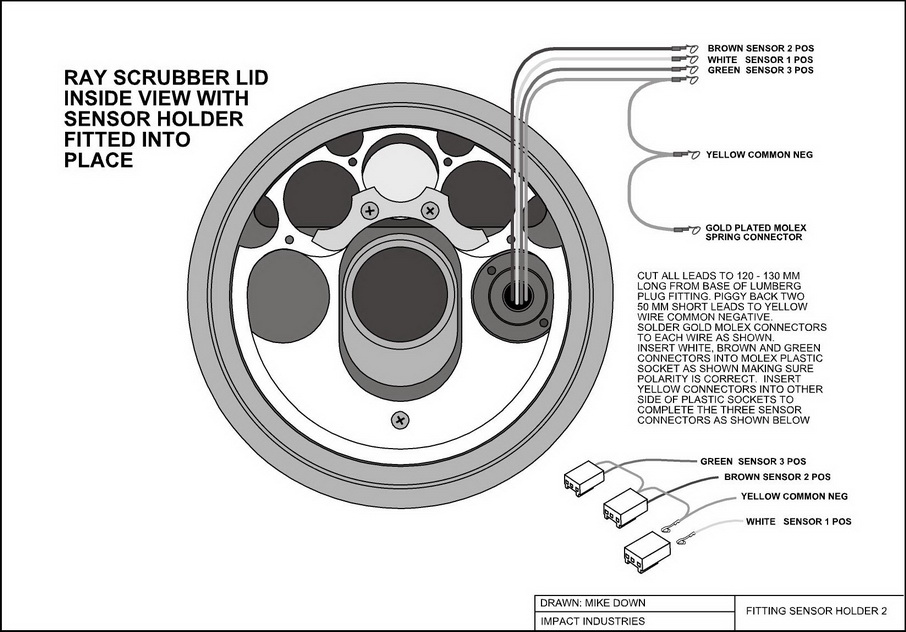

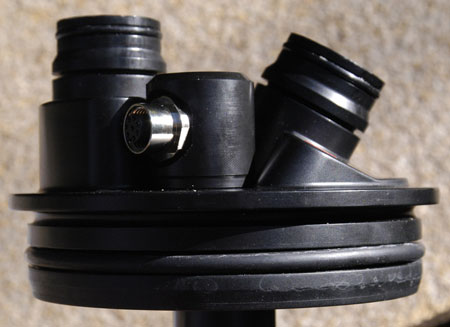

On Top of the scrubber lid, a
port is installed to let cables
go out 90 degrees We can install cable glands, Fischer plugs, Lumberg...or.....
|
|
 |
 Copyright all drawings: Mike Down
cable color in the left picture are only an example, depending which cable you use of course! |
|
 |
||
 |
||
