Bestellung/ordering just per email - info@tecme.de

Bezahlung/Payment by

PayPal

 is possible - no Creditcards




  CLICK HERE - WICHTIGER HINWEIS - DISCLAIMER - IMPORTANT NOTE - CLICK HERE



   *  You are looking fo special made parts? Ask us!
     *  Most of adapters and parts we also make for Ray, Azimuth, Voyager, Submatix not all listed here
     *  YES, we sell original DRAEGER parts, email us




ppO2 Display modules

All displays are for demonstration/developemet purpose only. Never trust any electronic device, the best Computer is between your shoulders! So take care you know what you are doing.

With our displays we only show what is possible, they are not for use on existing diving equipment

more pics click here

ready to use with R22D or similar sensors!!

D0001

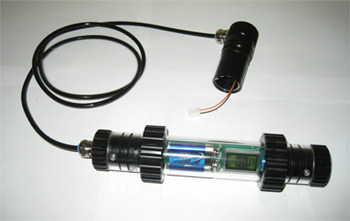

ppO2 Display unit complete

320,-€ (incl. sensor)

260,-€ w/o sensor

comes with p-port holder and sensor of course, so ready to use in p-port systems

Electronics from Marc Munro



Display units are tested for 1 hour to 8 bar

click here



click to enlarge

with 10K resistor installed!

ready to use with R22D or similar sensors!!

D0002

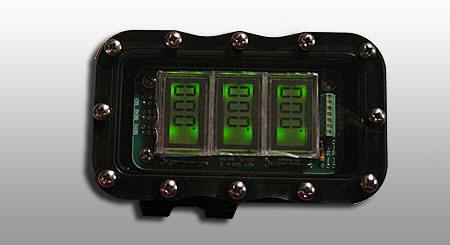

ppO2  3-Display unit complete

370,-€



female Lumberg plug installed


D0003



A new housing for the

Mark Munroe Gen6 display



430,- €



fixed switch with three positions



Yes the house is available without the electronic

180,-€





D0010 Cable/plug set 7 wire

IP 68

cable is 2 meters, cut it to your needs

plug is also pre wired !



48,-€

D0015 cable with molex connector

to connect sensors

4,- €



P0072 Aufnahme für Sauerstoffsensor im p-connector (ohne Sensor) Stecker passend VR3 (7pin) (ohne Sensor)

O2 sensor p-connector fitting,
plug fits VR3 (7pin) (w/o sensor)

115,-€

 the set comes with the black cable shown in D0016!!!




D0019 7 pin female plug Fischer

for fixed installation

50,- Euro

D0019 a Fischer plugs

D0019 is the DEE

D0019a is the DBEE

D0020



NEW modell !

the blueglobe®

cable gland with high strain relief

5,-€

Brass nickel plated

IP 68, up to 15 bar over the whole sealing range

metric thread M12x 1,5

thread lenght 10mm!!

for cables from 2-8mm !!

- WICHTIGER HINWEIS - DISCLAIMER - IMPORTANT NOTE -








Alle Artikel nur für den Export / Only for Export





Wir weisen an dieser Stelle nochmals ausdrücklich darauf hin,
dass alle Artikel auf dieser Seite Sammlerstücke ohne jegliche Gewähr oder Garantie sind.
Die Verwendung, der Ein- oder Anbau und die
Nutzung allgemein
und in jeglicher Form ist
nicht zulässig und erfolgt immer auf eigene Gefahr.
Durch Verwendung der Teile erlischt die Zulassung entsprechender Geräte.
Durch Erwerb dieser Sammlerstücke akzeptiert der Käufer diese Bedingungen.
Die einzelnen Teile dienen ausschließlich zur Demonstration, nicht zur Verwendung, es ist keine CE vorhanden.





All articles on this page are special and unique parts and for demonstration only and there is no warranty.
The use in any way is
not legal and always on own risk.
Mounting these parts
to any existing diving equipment may cause malfunction and the admission of your equipment will not be affective any more. On purchasing these items you accept these conditions.
All parts are exclusivly for demonstration purpose only, not for use!





note for  O-rings:

All parts (which come with an O-ring) are shipped with a dry (no grease) O-ring.
So take care that you
use your proper grease.
We decide to do that so there is no problem on mixing up different greases or so!
