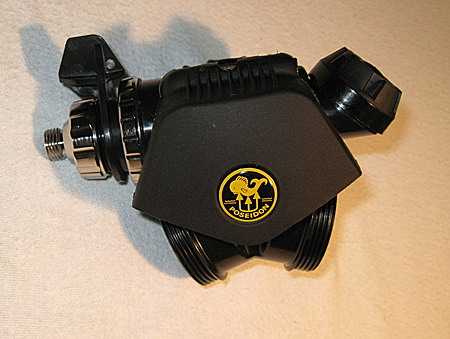

--- Bail Out DSVīs

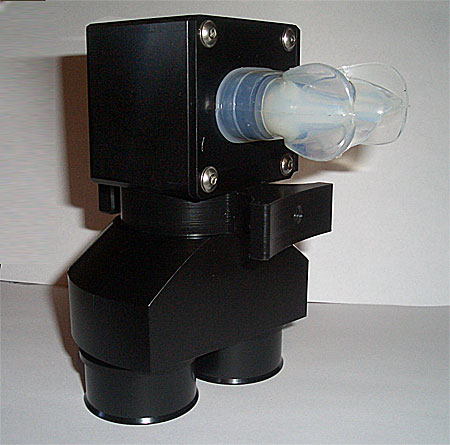

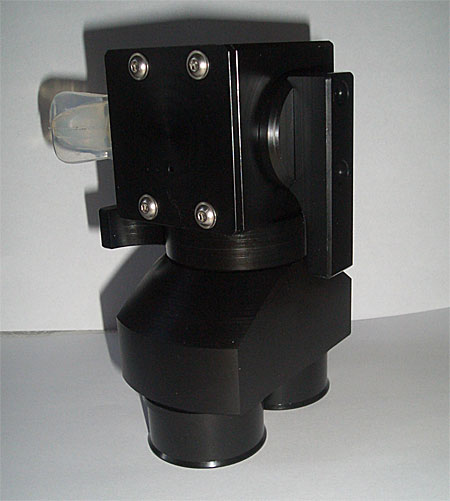

The two small holes in front are threated (M3 thread) of course, to mount a HUD..or what ever..



 BOV  Dolphin Version                           625,- Euro

                           BOV Clamp Version (all versions)                                670,- Euro     (39mm, 41mm or 44mm, Inspiration)



B0050  O-ring/direction valve kit                  22,- Euro

LP- Qick fitting set (Omni)                      82,- Euro

p-port Front plate                               75,- Euro

new spiders (set of 2)                     42,- Euro

New bar handle bar                         20,- Euro

Plug to close second stage LP  (A0045)   22,-

SS-clamp to fix hoses  4,- Euro    (range 33-57mm , 12 mm wide, completely made from SS of course)

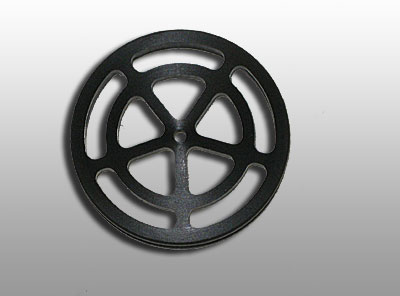

New enhanced spiders (mushroom holder) are available.

All new BOV were/are shipped with these



If you like to replace your old, please contact us

Note to all Tecme-BOV users.



Some user claim that the switch OC/CC is too strong.

1. a new bigger handle bar is availabe now

2. a new roll, slightly modified is available



If you like to change/upgrade  please contact us

See the difference.

The lower, more round is the original, the upper is a bit longer
and has a more square shape to give better grib with thick gloves

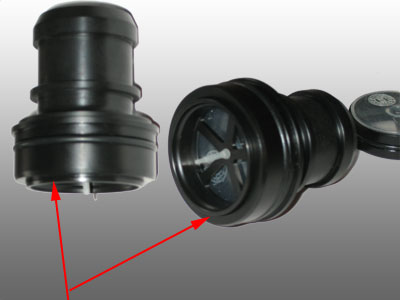

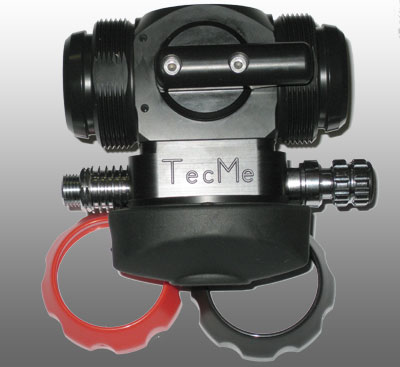

The clamed version, of course with a small shoulder on the hose fittings

weight: 615 gramms (as on the picture)

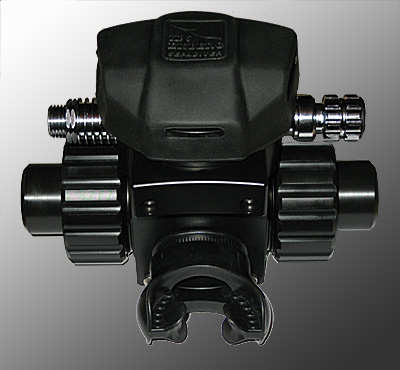

The Dolphin version, nice and compact

weight 600 gramms

We offer fittings to:

Dolphin hoses, Cooper hoses (small and big), Hammer Head hoses, Megalodon, Ray hoses, Azimuth (new) hoses, Submatix hoses, Inspiration.......



--It is made from tempered POM of course

--Over and Under Pressure Test. No problem the BOV passes both exellent for a LONG time

--Second stage uses a combi inhale/exhale valve (SEPA), that makes it smaller

--It will be left-right flow direction user interchangeable!
      So always check YOUR flow direction before installing the BOV!!!!

--Mushrom valves from Dolphin and/or Ray Rebreather can be used

--The OC second stage parts are from APEKS XTX50 of course.

--The LP hose to the 2.stage can be left or right, let us know what you like. With an additional (optional) parts you always can change it by yourself

--Two small threaded holes (M3 thread) are made to fit a HUD holder for example.

--The clamed version is flexible of course. You can replace the fittings and use other hoses! This is NOT possible (so far) on the Dolphin type BOV

--Due to the flexibility you can move/turn breathing hoses while they are connected

--A p-port mouthpiece connector is available to fit BOV to Panorama FFM!

--Weight is aprox 600 gramms, check if you find a lighter one!!!!

--There is an optional  "Travel Kit / rebuilt Kit" available , all needed O-Rings plus the direction valves.

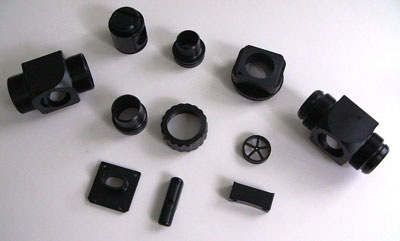

various parts for different modells

Anything else..ask us ...

32mm for smaller hoses

39 for Cooper hoses for Example

41 for Ray hoses (like rEvo)

44mm for MEG

anything in between---just tell us......

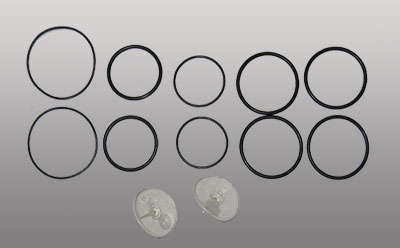

The complete O-ring set for both versions (Dolphin and clamp)

Including the mushroom valves

(no XTX 50 parts)



 B0050     22,- Euro



















Important note

for the INSPIRATION fittings, the valve holder (spider) for EXHALE valve has to be in the first o-ring nut, so the spider has to stay out a few mm!!!.

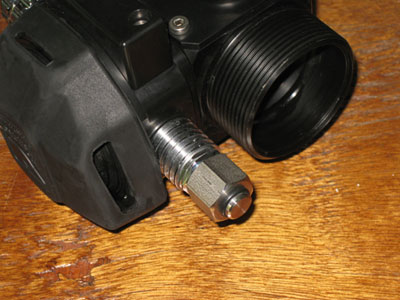

Plug to close LP thread of second stage
