A0001

n/a

DIN 200 bar connection


Piston 1stage (old stage) -comes with one o-ring and new filter

note: Connection is only for testing.
Be carefull not to switch tanks and gases!!

 how to open First stage!!

A0001a

62,-€

DIN 200 bar connection
Membran 1st stage

300 bar version 60,- Euro



note: Connection is only for testing.
Be carefull not to switch tanks and gases!!

how to open First stage!!


A0002

64,- €



DIN Fitting for RAY 1.stage





A0080

35,- €



Replacement head connector for MEG with direct 9/16 regulator fitting



A0015

24,- €

Dieser Adapter erlaubt den Anschluss jeden normalen Mitteldruckschlauches an die Düsen

This adapter gives you the possibilty to fit any normal  LP hose from a regulator to the injector unit (orifice)






A0016

24,- €

Adapter zum Anschluss eines
normalen ND-Schlauches auf den Bypass

Adapter to fit any normal LP hose to the bypass

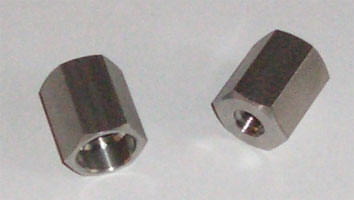

A0017

22,- €


Dieser Adapter erlaubt den Anschluss jeden normalen Schlauches mit 3/8 UNF an die Düsen


This adapter gives you the possibilty to fit any normal  LP hose to the injector unit (orifice)

with the male 3/8 side or you can screw in an inflator coupling e.g.

so it is orifice to female 3/8 !
will use the original o-ring fo sealing


A0008

24,-€



Blindstopfen Set für Dosiereinheit / Blindplug Set for Dosage Unit








A0009

21,- €


Adapter zum Anschluss eines normalen
ND-Schlauches (3/8) an die Erste Stufe Dräger
.
Passt auf beide ND-Anschlüsse

Adapter to fit any LP Hose (3/8) to the first stage Draeger.
Fits to both of the LP-threads of the Draeger stage

the one with the nut (left in pic) is for the "ring" fitting of piston regulator



  A0009a

20,-€



We also have adapters to fit the Draeger hose to normal first stage

     does not work with the"ring fitting"




A0010

21,- €

Adapter zum Anschluss eines normalen HD (Fini) Schlauches

Adapter to fit normal HP hoses to the Draeger first stage to use other pressure gauge

only for piston style (old style) regulator neccessary




A0011

62,- €

Adapter for Dolphin dosage or  bypass.

fits orifice

Allows you to connect  2 normal LP hoses at the same time
both are for use with two normal LP hoses (9/16)!!

A0011a

62,- €



Adapter for Dolphin dosage or  bypass.

fits bypass

Allows you to connect  2 normal LP hoses at the same time
both are for use with two normal LP hoses (9/16)!!

A0011c

62,- €

due to many requests

T-Adapter for Bypass

one side original Drager hose, other side normal LP hose (9/16)

A0011d

62,- €

T-Adapter for Bypass

but with both threads to use two original Draeger hoses.
 Normal LP hoses will NOT work with this!


A0012

38,- €

Knee-adapter to fit any normal LP regulator hose to the orifice/dosage



A0013

38,- €

Knee-adapter to fit any normal LP regulator hose to the bypass


A0014

38,- €

Knee-adapter both sides normal LP regulator hose  !!

male 9/16 to female 9/16 !!


A0030

25,- €

Dosage replacement for injecting gas from other dosage divice e.g.
 (needle valve, KISS valve, CMF or similar) into the bypass unit.

This is NOT an orifice with constant flow!!

This part has a 4-5mm whole and
 male thread (9/16) for normal regulator hose
on outer side and inner side same fitting as original Draeger orifice to use the nut.

 It comes with nut of course!


A0031

25,- €

Dosage replacement for injecting gas from other dosage divice e.g.
(needle valve, KISS valve, CMF or similar) into the bypass unit.

This is NOT an orifice with constant flow!!

This part has a 4-5mm whole and a
female thread 3/8 UNF
for normal hoses
on outer side and inner side same fitting as original Draeger orifice to use the nut.
It comes with nut of course!

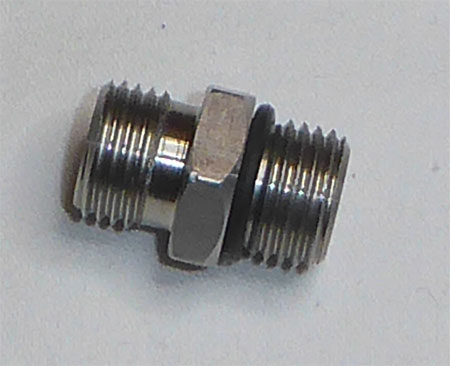

A0038

21,- €





Adapter 9/16 m  -  9/16 m

fits A0039 and A0045




A0039

57,-



Adapter/Distributor

female 9/16 to

2 female 3/8

There is enough room to connect a flowstop or a Swagelog fitting ---or other things




All manifolds shown below have a standard distance between the 3/8 UNF holes to fit hoses side by side. If you need to fit a QC6 or a shutt off please let us know before ordering as then distance between holes MUST be BIGGER !!

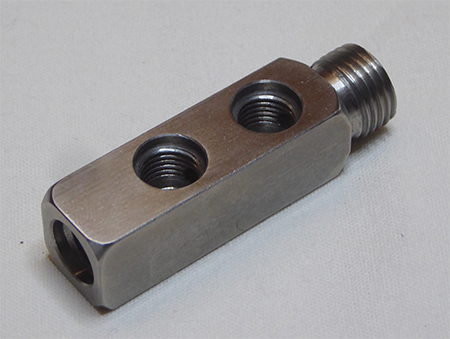

A0040

45,- €

Adapter/Distributor

Male 9/16 to connect an LP hose

3 female 3/8 to extend and distribute

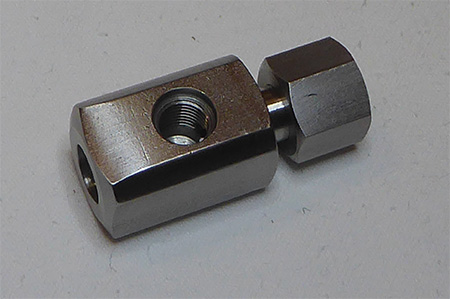

A0040_X3

49,- €



Adapter/Distributor

Female 9/16 to connect

2 female 3/8 to extend and distribute

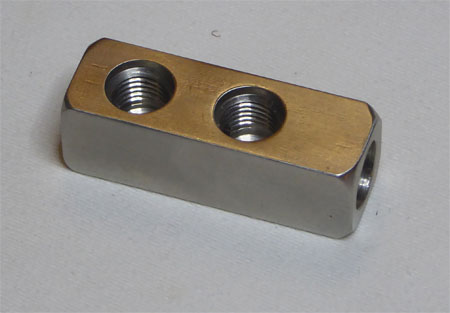

A0041

45,- €

Adapter/Distributor

Side: 1x 3/8 UNF

top: 2x  3/16 UNF



size: square 15x15mm



  A00XX

YES

other thread configurated distributors/manifolds are available,

 tell us what you need.  martin (@) tecme.de

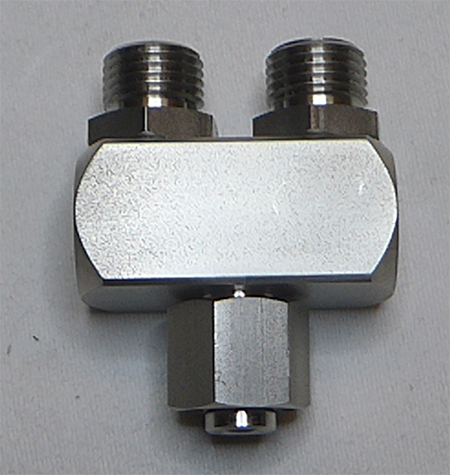

A0200_9/16

79,- €

Adapter/Distributor

top: 2x  9/16 UNF male (or female 9/16 if male is unscrewed)

bottom: 1x 9/16 UNF female with nut


  A0200_3/8

79,- €



Adapter/Distributor

top: 2x 3/16 UNF female (or 9/16 female if inlet is is unscrewed)

bottom: 1x 9/16 UNF female with nut

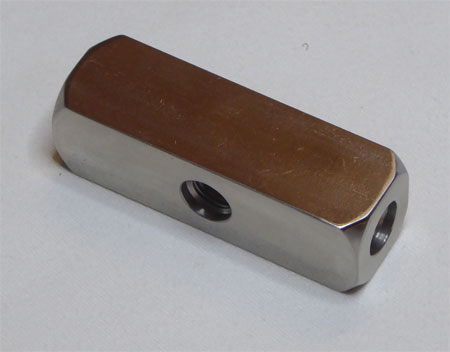

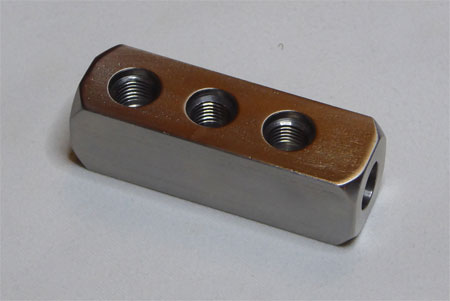

A0042

50,- €



Adapter/Distributor

Side: 1x 3/8 UNF

top: 3x  3/8 UNF

bottom: 1x 3/8 UNF



size: square 20x20mm

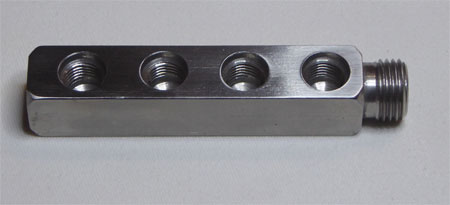

A0043

68,- €



Adapter/Distributor/Manifold
male 9/16 to fit normal LP hose


4x 3/8 UNF on top

size: square 15x15mm





A0044

74,- €





Adapter/Distributor/Manifold
male 9/16 to fit normal LP hose
4x 3/8 UNF on top

size: square 20x20mm


plus 2x M4 threads to mount it

the M4 mounting threads are on both side



  A0044_B

74,- €





Adapter/Distributor/Manifold

4x 3/8 UNF on top

1x 3/8 UNF fem on side

size: square 20x20mm


plus 2x M4 threads to mount it

the M4 mounting threads are on both side




A0045

76,- Euro

Distributor/manifold

4x 3/8 on top

1x 9/16 female below


A0046

Distributorblock

2 times 3x 3/8 UNF

99,- Euro



This block has 2 times 3x UNF 3/8 holes in T-form, 1 on top 1 on bottom 1 in front.

the 2 distributor ways are NOT connected

4 small mountig holes

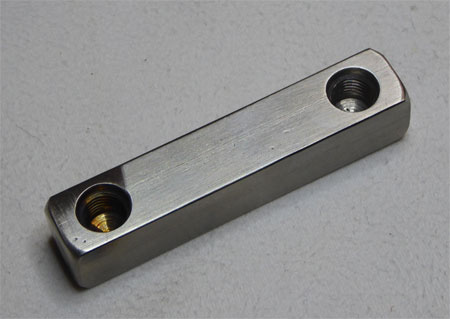

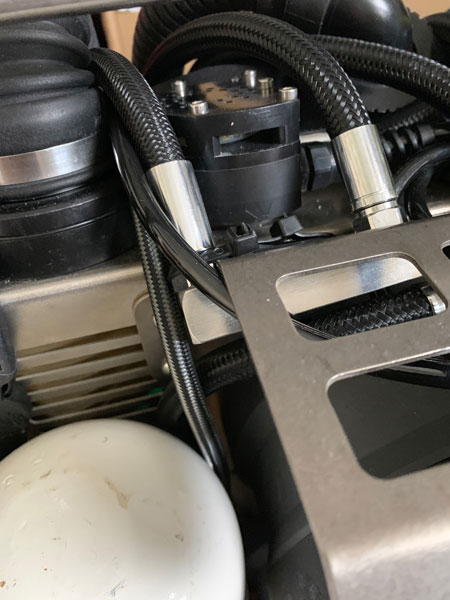

A0047_rEvo

40,- €



Manifold, special size and fit for rEvo

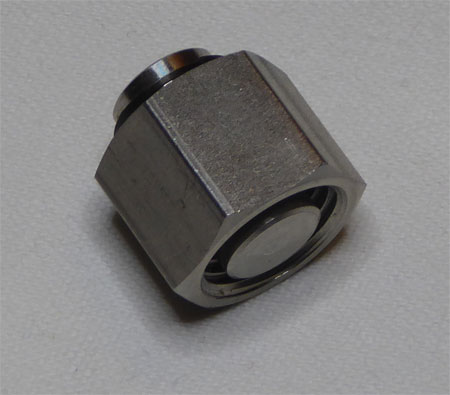

A0048

25,- €

Plug set to close 9/16 male ports
for example on second stage (BOV)

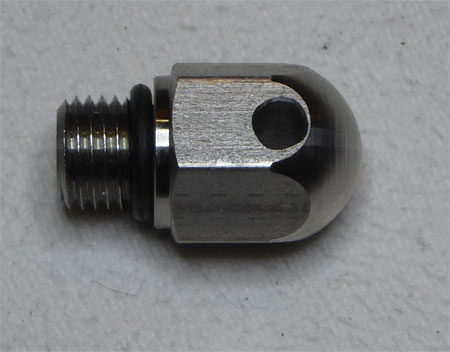

A0049

18,- €



Plug, extra long for 3/8 UNF holes

with a 4mm hole

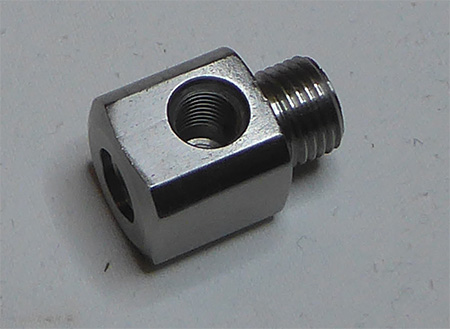

A0050

24,- €

90° angle  male 9/16 UNF  --  2x  female 3/8 UNF




A0060

21,- €

Adapter

male 7/16 UNF  --  female 3/8 UNF


A0061

21,- €

Adapter

male 7/16 UNF    --   male 9/16 UNF

9/16 UNF is thread for normal LP hose at 2nd stage side!


SPK0007

29,- €

price without the Kiss jet

Fitting to hold inside a KISS jet.

Shown here is a 3/8male to 9/16 male




A0061 a

21,- €

Adapter

male 3/8 UNF    --    male  9/16 UNF


A0061 b

21,- €

Adapter

male 3/8 UNF   --  male 7/16 UNF


A0062

21,- €

Adapter

male 3/8 UNF  --   female 7/16 UNF


A0063

21,- €

Adapter

female 7/16 UNF  --  female 7/16 UNF

A0063a

21,- €

Adapter

female 3/8 UNF -- female 3/8 UNF

A0063b

21,- €



Adapter

female 3/8 UNF --  female 7/16 UNF

A0063c

21,- €

Adapter

female 9/16 UNF  --  female 3/8 UNF


A0065

24,- €

Adapter

male 7/16   to Swagelok hose

the "SWAGELOK thread" is 7/16 ! The fitting itself is for 1/4 tube fiting


A0066

24,- €

Adapter

male 3/8 UNF  to Swagelok


A0067

21,- €

Adapter

Swagelok to female 3/8 UNF



A0069

39,- €

Adapter

Swagelok    to    female 9/16 UNF

to convert your Swagelok hose to normal regulator hose fitting without any additional adapter

click here for more info

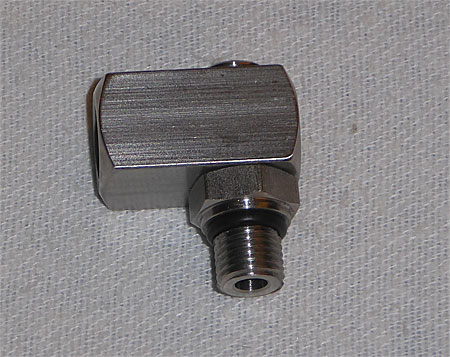

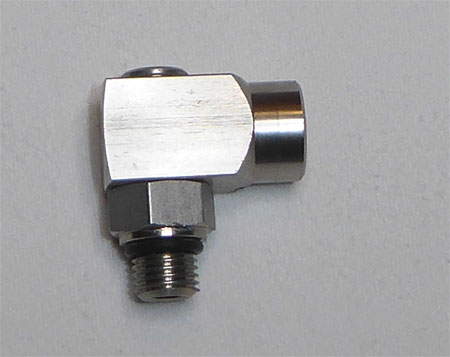

A0070-3/8

34,- Euro

new, slimline 3/8 angle, turnable

male 3/8 -- female 3/8



complete made from stainless steel of course

the male 3/8 thread is a bit longer (9mm) than standard (6-7mm) for better fitting into plastic threads for example

still fits nearly all 1 stages, shorter 3/8 male is possible on request

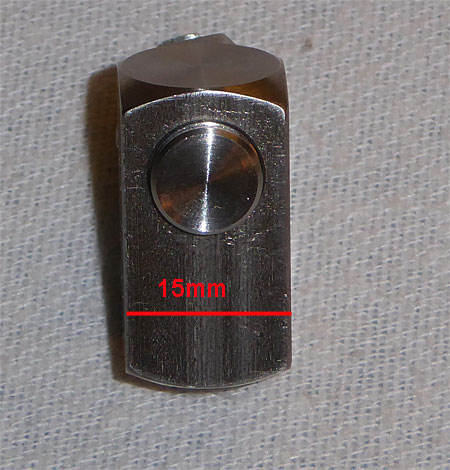

slimline, only 15mm wide !

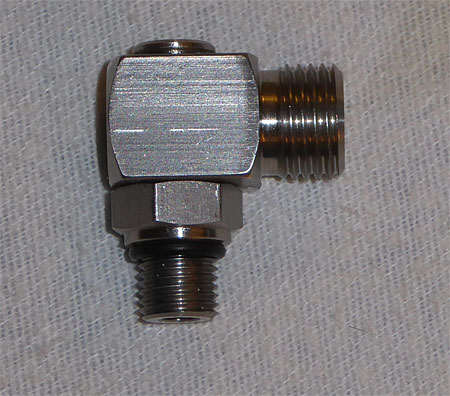

A0074

34,- Euro





new, slimline angle, turnable

male 3/8 -- male 9/16 (regulator hose fitting)



complete made from stainless steel of course

the male 3/8 thread is a bit longer (9mm) than standard (6-7mm) for better fitting into plastic threads for example

still fits nearly all 1 stages

slimline, only 15mm wide !



A0075

34,- Euro


new, slimline 7/16 angle, turnable

male 7/16 -- female 7/16





    Other combinations of the new A007xx series will follow....

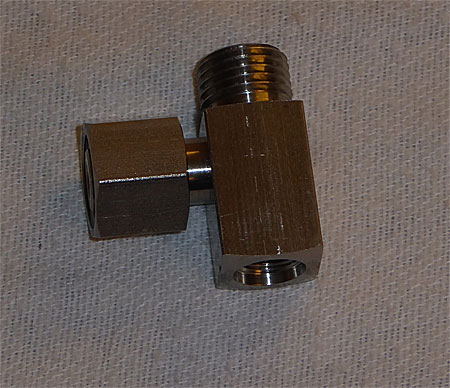

A0077

45,- Euro


T-Adapter

9/16 fem- 9/16 male- 3/8female

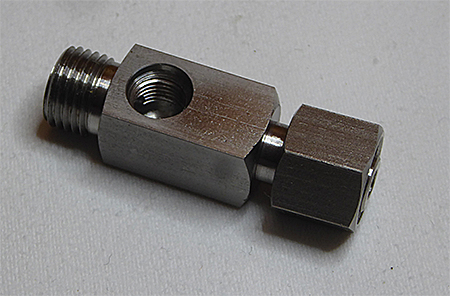

A0078

45,- Euro



T-Adapter

3/8 fem- 9/16 male- 9/16 fem

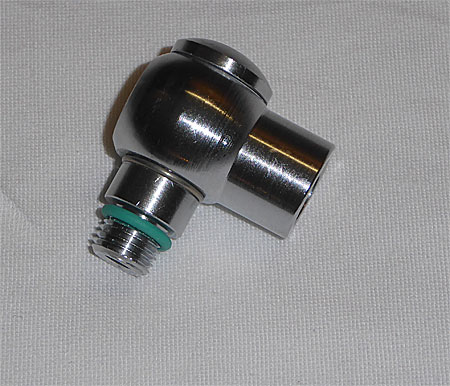

A0070B

36,- €







Adapter    (22 mm wide)

male 3/8 UNF to female 3/8 UNF

90° turnable



A0071B

43,- €





Adapter (22 mm wide)

male 7/16 UNF to female 7/16 UNF

90° turnable

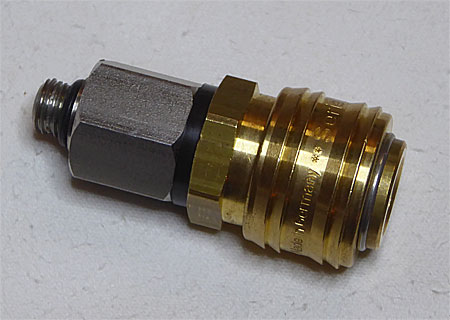

A0090

34,- €

Adapterset to connect standard fittings for compressed air  to scuba threads

A0090: male 3/8 UNF fitting to connect to 1.satge

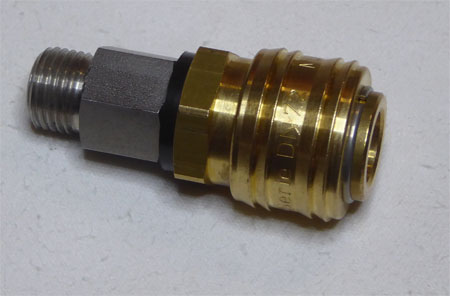

A0091

34,- €



Adapterset to connect standard fittings for compressed air  to scuba threads

A0091: male 9/16 UNF fitting to screw on regulator hose




A0105

21,- €

Adapter

female 3/8 UNF to male 9/16


A0108

21,- €

Adapter

female 7/16 to male 9/16
