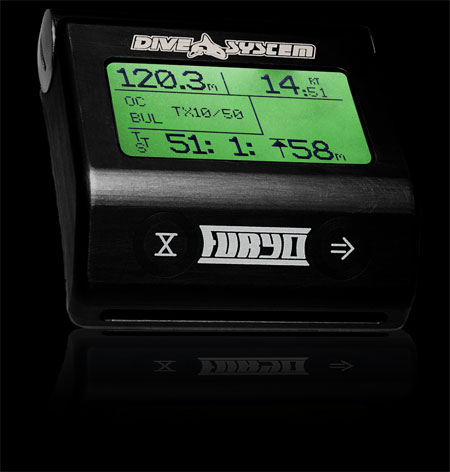

The New technical and recreational Dive Computer in nice design

check the link here for some first impressions on the HUD !!!!!!!!

Technical overview

Air, Nitrox, Trimix with use for recrational and technical diving including all types of rebreather diving including O2 cell monitoring

Key Features:

  • Decompression Algorithms: Bühlmann ZH-L 16C implemented Gradient Factor settable
A system that allows you to vary at will according to the decompression algorithm Conservatism Gradient Factor Hi and Low, allowing you to make the first decompression stop deeper, according to recent medical hyperbarical  studies.

Nice and big display  65mm x 35mm, with clear huge digits

  • used for:
  - air
  - nitrox
  - trimix
  - rebreather (ECCR, MCCR, SCR)
  • 12 user definable diluent gases (reb)
  • 12 user definable OC/ bail-out gases


    active: gas now breathed

    - Enabled: gas intended for use (calculated for the ascend time based on your max ppO2 settings)
    - Disabled: gas is not forecasting for any calculations. (Activable in emergency also during the dive!)

Price:    e-mail us

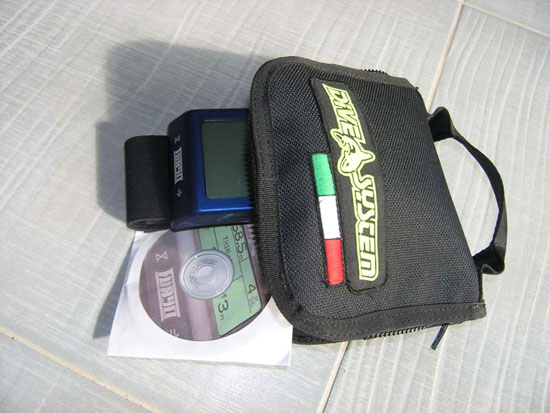

will come in a nice bag, with CD containing the manual and PC software. (as seen on picture right side)

Standard color is black.  other colors on request with a small extra fee




Fine here below some photos of the screen while diving

for more details please read the manual!


  • Deep stop
  • CNS and OTU counter
  • Data stored each second
  • Automatic adaptation to altitude
  • Manage up to 3 sensors O2
    1 or 2 or 3 sensors can be monitored !

  • Unexpose connector usable for:
  - H.U.D. (Head Up Display)
  - 1 to 3 oxygen sensorboad
  - USB port
  • Bluetooth module for PC Connection
  • Downlodable dive data
  • Configurable by PC software
  • Updatable firmware







while in CCR mode with O2 cell
monitoring enabled, it shows the average ppO2 of the 3 cells, plus the F02 based on the actual measured ppO2.

You only see the average ppO2 if all cells (2 or 3) are measuring the

in CCR mode with monitoring 3 cells and one cell is out of range, the display changes automatically showing all 3 cells separately, so the diver can manually deactivate the cell out of range manually if he likes.



diving in OC mode, using air as the active gas, the active gas is shown and also the the actuall ppO2 of the active gas.


  • GWS system ( "Gel.Watertight.System") makes the electronic waterproof maintain at ambient pressure without the need for watertight rooms and O-rings subject to wear, thus improving mechanical reliability and impact strength.

  • 2 piezo input buttons make the external structure free from holes by increasing the strength and reliability.

  • Body Aluminum laser engraved
  •  Display LCD

  • 1 battery R123 3V (2 years standby)  User replaceable
    Will last for at least 100 dives or more

  • Guarantee accuracy of the sensor: 130 mt

  • Maximum detection depth: 300 mt



The PC software allows various settings and the download of the logbook in an accurate 1 second profile!

O2 cells can be monitored sepratly.

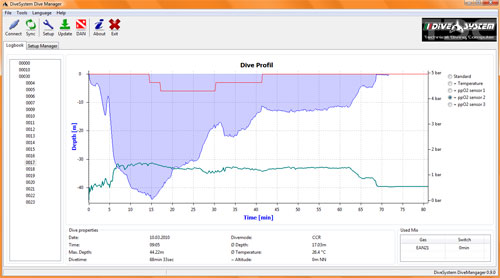

Have a look on a sample dive here, a screenshot of the PC software

The software is available in Englisch, German and Italian language

Optional parts

O2 sensor cable, will be released shortly, give you the possibility to monitor 1,2 or 3 cells.

Yes, also 2 cells only can be monitored.

The plug system is very nice and strong srewed plug with easy to maintain o-rings, depth rate 300meters

Price sensor cable  : e-mail us

part number D0030, see cables and more



cap far cable of FURYO dive computer

made from stainless steel, waterproof sealing

15,- Euro









---
